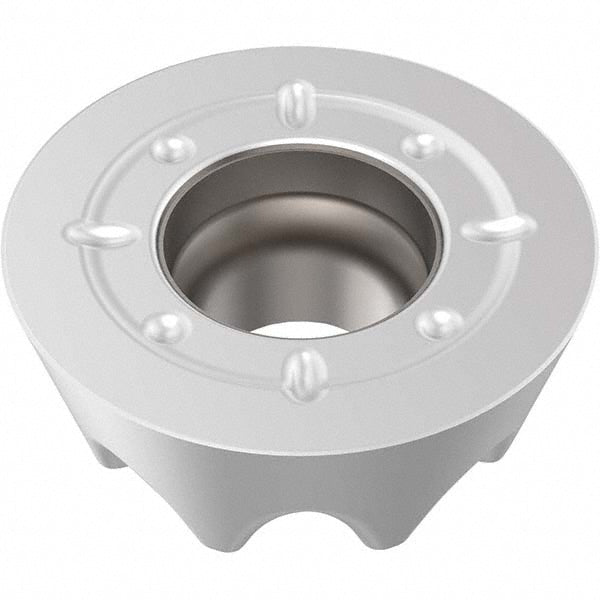

RDKW10T3M0T-8-MD06 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03280741
MFR# 03280741ISO/ANSI# RDKW10T3M0T-8-MD06Cat# RDKW10T3M0T-8-MD06Series RDKW-10
$13.22List $16.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03280741 is a RDKW10T3M0T-8-MD06 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeRDKW10T3M0T-8-MD06
Chip breakerMD06
Coating finishTiCN
Coating processCVD
Corner radius0.1969
Cutter series compatibilityR217.29-05; R220.29-05
Cutting edge effective length0.1969
Cutting edge styleT-Land
Hole diameter0.1378
Included angle degree360
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size10
Insert size code10T3
Insert styleRDKW
Iso codeRDKW10T3M0T-8-MD06
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberRDKW10T3M0T-8-MD06
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.1969
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel
RakeNeutral
Rake angle0
Relief angle15.00
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeRound
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3937
