Seco

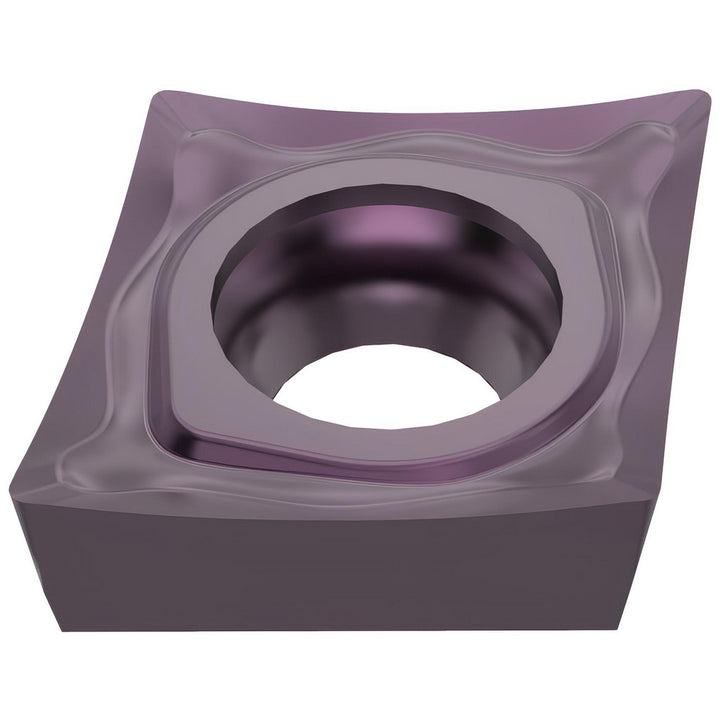

CCGT060204F-AL Carbide Insert, Grade TS2050, TiAlSiN - Seco 03280809
MFR# 03280809ISO/ANSI# CCGT21.51F-ALSeries CCGT-AL
$26.35List $33.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTS2050
MaterialCarbide
CoatingTiAlSiN
Description
The Seco 03280809 is a CCGT060204F-AL carbide indexable insert, grade TS2050, TiAlSiN coated. Suited for superalloys & titanium.
Specifications
Chip breakerAL
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1102
Included angle80
Industry standard numberCCGT21.51F-AL
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060204F-AL
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number03280809
Manufacturer gradeTS2050
Material gradeS10
Maximum depth of cut0.2378
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle21
Relief angle7
Secondary workpiece materialStainless Steel; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
