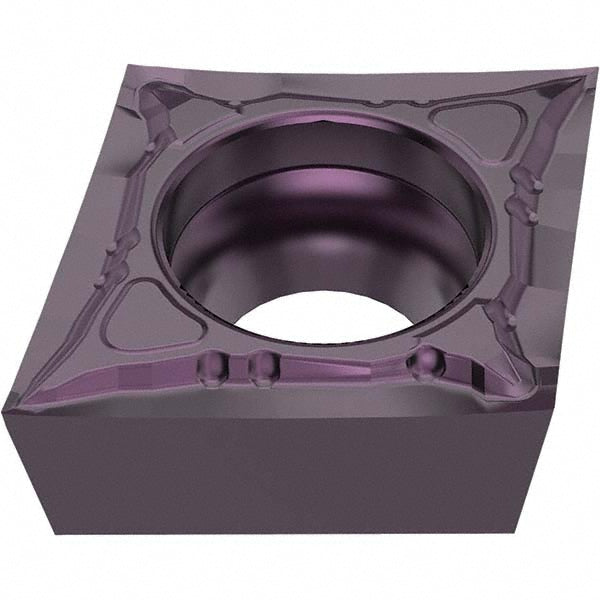

CCGT09T302-F1 Carbide Insert, Grade TS2050, TiAlSiN - Seco 03280812

Seco

CCGT09T302-F1 Carbide Insert, Grade TS2050, TiAlSiN - Seco 03280812

MFR# 03280812ISO/ANSI# CCGT32.50.5-F1Series CCGT-F1

$24.67List $31.64 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTS2050
MaterialCarbide
CoatingTiAlSiN

Description

The Seco 03280812 is a CCGT09T302-F1 carbide indexable insert, grade TS2050, TiAlSiN coated. Suited for superalloys & titanium.

Specifications

Chip breakerF1
Clearance codeC
Coating finishTiAlSiN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCGT32.50.5-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.50.5
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT09T302-F1
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number03280812
Manufacturer gradeTS2050
Material gradeS10
Maximum depth of cut0.3728
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialStainless Steel; Hard Material
StandardsANSI; ISO
Tolerance codeG
Width in3/8in
Wiper edgeNo
