Seco
Indexable Turning & Profiling - Seco 03282263
MFR# 03282263Series JETI
$384.27List $408.24
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

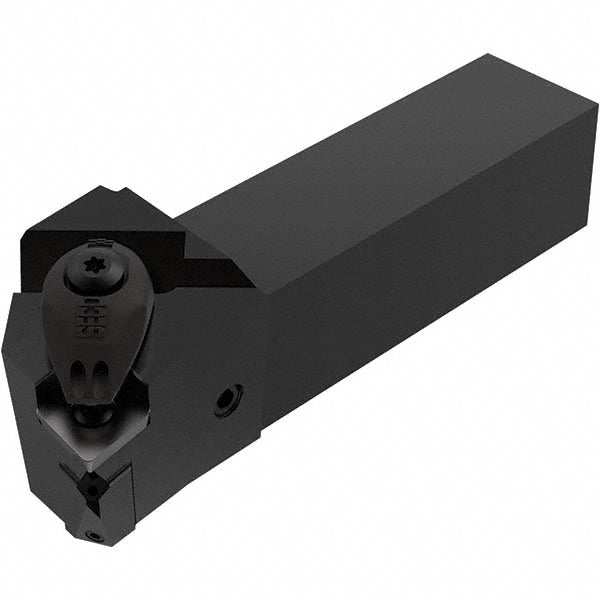

The Seco 03282263 indexable turning & profiling. Suited for universal. Series JETI.
Specifications
Back of bar to cutting edge1.2598
Compatible insert size codeCN43
Cutting directionRight Hand
Cutting tool applicationTurning
Hand of holderRight Hand
Head length (mm)38.00
Insert compatibilityCN..4
Insert holding methodClamp
Insert inscribed circle in1/2
Insert width in3/16
Multi use toolNo
Overall length (mm)120.00
Primary workpiece materialUniversal
RakeNegative
Rake angle-6.5
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleDCLN
