Seco

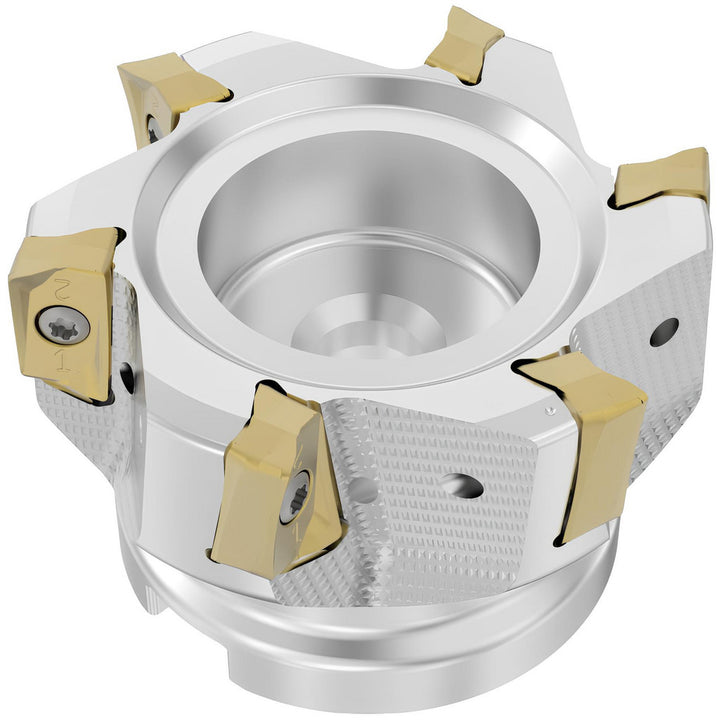

Indexable Milling Cutters - Seco 03290254
MFR# 03290254Series R220.64
$1,026.80List $1,123.20
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Seco 03290254 indexable milling cutters. Series R220.64.
Specifications
Arbor hole diameter in1
Compatible insert size codeZOMX16
Complete insert compatibilityZOMX16
Coolant throughYes
Cutter styleR220.64
Cutting directionRight Hand
Cutting edge length0.5910
Hub diameter (mm)62.00
Insert holding methodScrew
Keyway width (mm)9.70
Lead angle90
Maximum cutting diameter in3
Maximum depth of cut (mm)15.00
Maximum ramping angle0.10
Minimum insert radius0.0313
Number of cutter inserts6
Number of flutes6
RakeNegative
Toolholder materialSteel
Tool applicationSlotting
