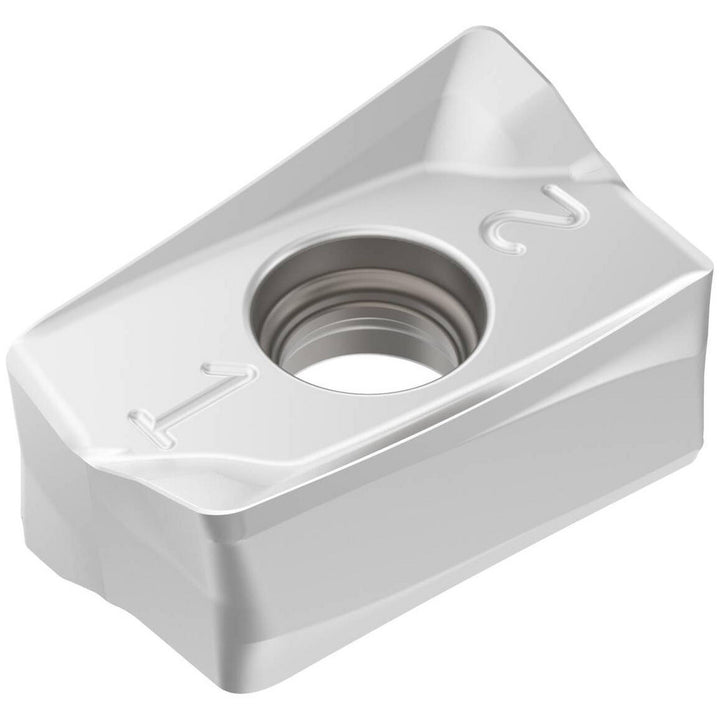

ZOMX160708TR-ME10 Solid Carbide Insert, Grade MP2501, TiCN - Seco 03290927
MFR# 03290927ISO/ANSI# ZOMX160708TR-ME10Cat# ZOMX160708TR-ME10Series ZOMX-16
$29.22List $37.48
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03290927 is a ZOMX160708TR-ME10 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeZOMX160708TR-ME10
Chip breakerME10
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.64-Z016; R220.64-Z016
Cutting edge effective length0.6102
Cutting edge styleT-Land
Hole diameter0.1890
Included angle degree90
Inscribed circle0.4236
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size16
Insert size code160708
Insert styleZOMX
Iso codeZOMX160708TR-ME10
Length0.6102
Length range0.6000 to 0.6500
Manufacturers catalog numberZOMX160708TR-ME10
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6102
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle39.1
Relief angle0.00
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.2906
Thickness range0.2500 to 0.3500
Width0.4236
