Seco

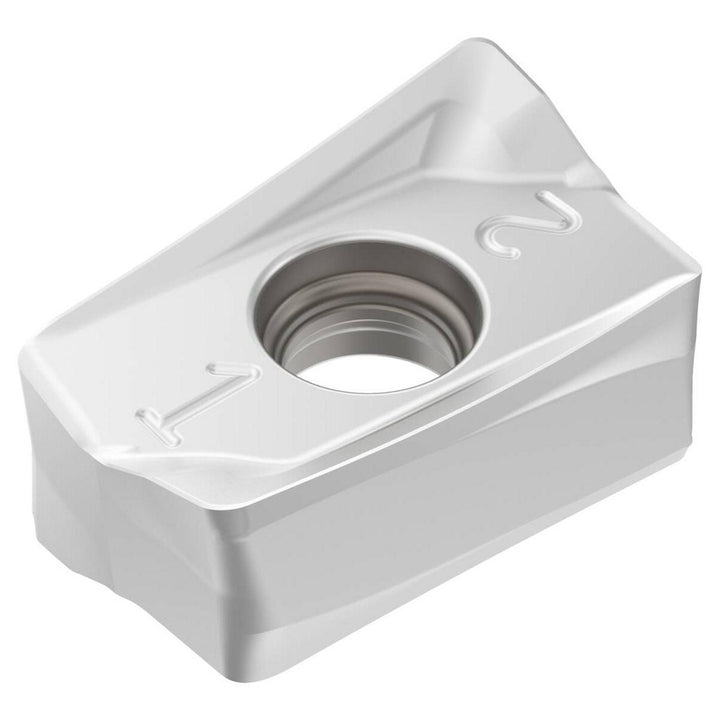

ZOMX160708TR-M12 Solid Carbide Insert, Grade MP1501, TiCN - Seco 03290934
MFR# 03290934ISO/ANSI# ZOMX160708TR-M12Cat# ZOMX160708TR-M12Series ZOMX-16
$32.25List $41.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeMP1501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 03290934 is a ZOMX160708TR-M12 solid carbide indexable insert, grade MP1501, TiCN coated. Suited for steel.
Specifications
Ansi codeZOMX160708TR-M12
Chip breakerM12
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.64-Z016; R220.64-Z016
Cutting edge effective length0.6102
Cutting edge styleT-Land
Hole diameter0.1890
Included angle degree90
Inscribed circle0.4236
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size16
Insert size code160708
Insert styleZOMX
Iso codeZOMX160708TR-M12
Length0.6102
Length range0.6000 to 0.6500
Manufacturers catalog numberZOMX160708TR-M12
Manufacturer gradeMP1501
Material applicationSteel; Cast Iron; Hard Material
Material gradeFine Grain
Maximum depth of cut0.6102
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
RakeNegative
Rake angle29
Relief angle0.00
Secondary workpiece materialCast Iron; Hard Material
ShapeRectangle
Single or double sided insertDouble
StandardsISO
Thickness0.2906
Thickness range0.2500 to 0.3500
Width0.4236
