Seco

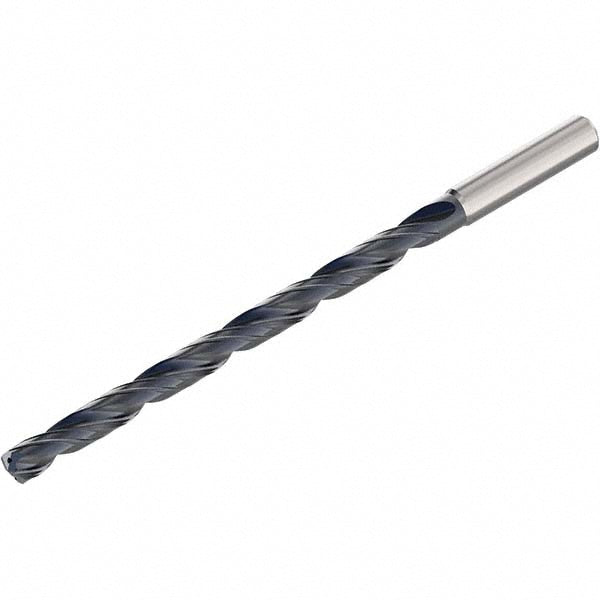

0.1457" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 03295092
MFR# 03295092Series SD1112A
$265.66List $314.76
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiAlN
Description
The Seco 03295092 is a 0.1457" Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for cast iron, stainless steel, steel. Series SD1112A.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size0.1457
Drill point angle140
Flute by diameter ratio12xD
Flute length (mm)54.00
Flute typeSpiral
Maximum drilling depth (mm)48.00
Number of flutes2
Overall length (mm)92.00
Primary workpiece materialCast Iron; Stainless Steel; Steel
Shank diameter (mm)6.00
Shank length (mm)36.00
Shank typeStraight-Cylindrical
Spiral typeRegular
StandardsDIN 6537A
Tool materialSolid Carbide
Web thinningWeb-Thinned
