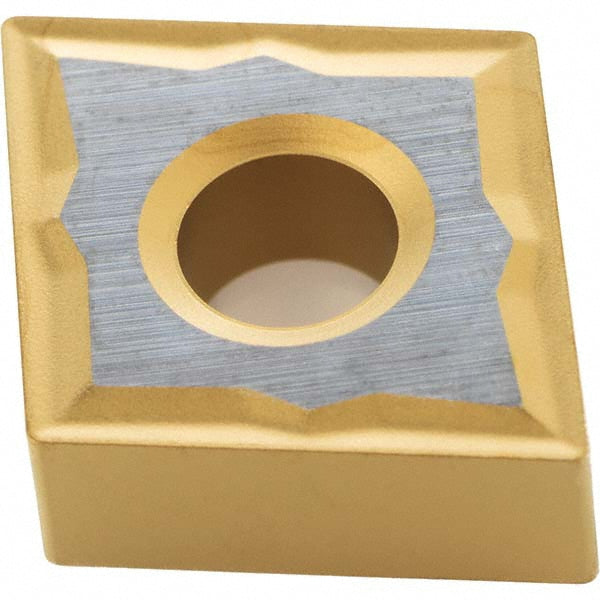

CNMG120408-M3 Carbide Insert, Grade CP500, TiAlN - Seco 03309547

Seco

CNMG120408-M3 Carbide Insert, Grade CP500, TiAlN - Seco 03309547

MFR# 03309547ISO/ANSI# CNMG120408Series CNMG-M3

$18.77List $24.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeCP500
MaterialCarbide
CoatingTiAlN

Description

The Seco 03309547 is a CNMG120408-M3 carbide indexable insert, grade CP500, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeCNMG432
Ansi size code432
Chip breakerM3
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2028
Included angle80
Industry standard numberCNMG432-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-M3
Iso insert codeCNMG120408
Iso size code120408
Lead angle80
Length range0.5000 - 0.6000
Manufacturers catalog number03309547
Manufacturer gradeCP500
Material gradeM10; M20; M30
Maximum depth of cut0.4756
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
RakeNegative
Rake angle17
Relief angle0
Secondary workpiece materialSteel; Cast Iron; Superalloys & Titanium
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
