Seco

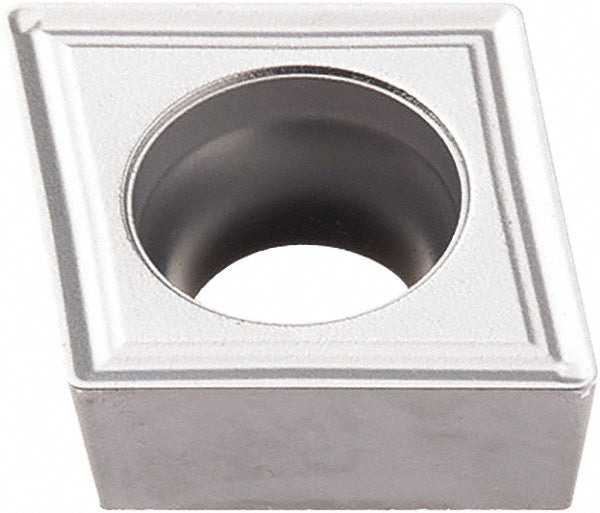

CCMT09T304-M3 Carbide Insert, Grade TP25, TiCN - Seco 03310372
MFR# 03310372ISO/ANSI# CCMT32.51-M3Series CCMT-M3
$14.57List $18.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03310372 is a CCMT09T304-M3 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1772
Included angle80degree
Industry standard numberCCMT32.51-M3
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3819
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304-M3
Lead angle80degree
Length range0.3000 - 0.4000
Manufacturers catalog number03310372
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.3661
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
