Seco

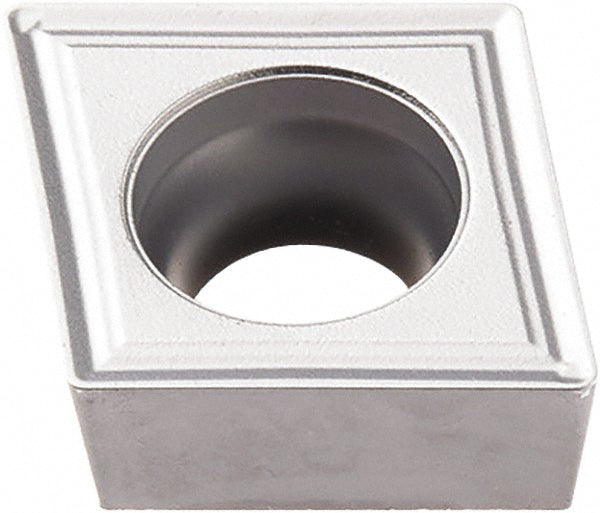

CCMT120408-M3 Carbide Insert, Grade TP25, TiCN - Seco 03310376
MFR# 03310376ISO/ANSI# CCMT432-M3Series CCMT-M3
$24.85List $31.32
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03310376 is a CCMT120408-M3 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2205
Included angle80degree
Industry standard numberCCMT432-M3
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408-M3
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number03310376
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.4921
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
