Seco

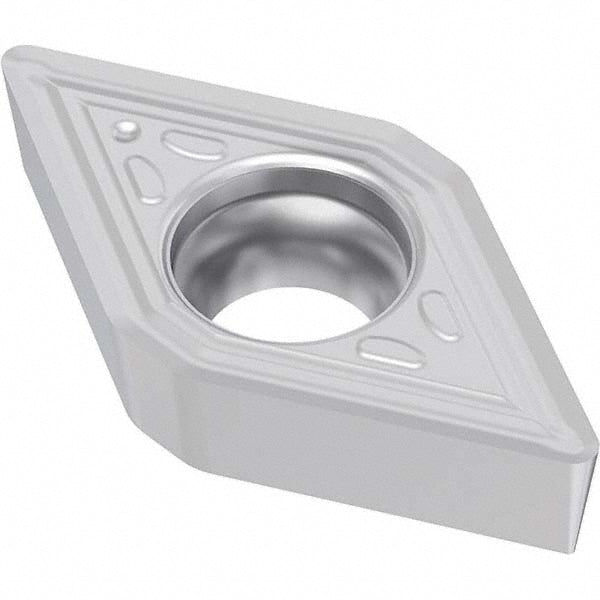

DCMT070204-M3 Carbide Insert, Grade TP25, TiCN - Seco 03310378
MFR# 03310378ISO/ANSI# DCMT21.51-M3Series DCMT-M3
$12.54List $16.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeTP25
MaterialCarbide
CoatingTiCN
Description
The Seco 03310378 is a DCMT070204-M3 carbide indexable insert, grade TP25, TiCN coated. Suited for steel.
Specifications
Chip breakerM3
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1142
Included angle55
Industry standard numberDCMT21.51-M3
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6142
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070204-M3
Lead angle55
Length range0.6000 - 0.6500
Manufacturers catalog number03310378
Manufacturer gradeTP25
Material gradeP20; P30; P35
Maximum depth of cut0.2441
Multi use applicationBack Turning; Boring; Facing; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle17
Relief angle7
Secondary workpiece materialStainless Steel; Cast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
