Seco

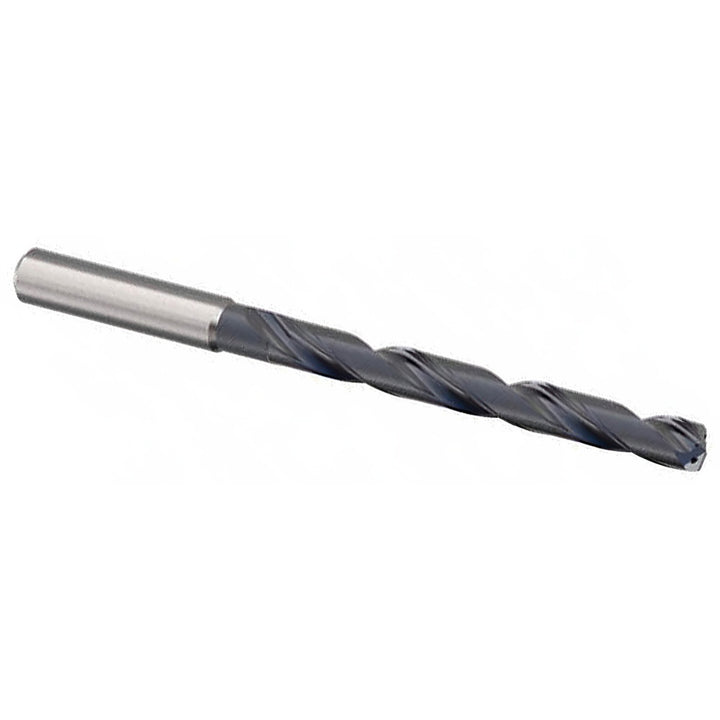

3/8" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 03323696
MFR# 03323696
$245.05List $314.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
CoatingTiAlN
Description
The Seco 03323696 is a 3/8" Solid Carbide drill bit with a TiAlN finish, 140° point.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size in3/8
Drill point angle degrees140
Drill point length (mm)1.70
Flute length (mm)95.00
Flute length x diameter ratio8xD
Flute typeSpiral
Maximum drilling depth (mm)80.00
Overall length (mm)139
Shank diameter (mm)10.00
Shank length (mm)40.00
Shank typeStraight-Cylindrical
Threaded shankNo
Tool materialSolid Carbide
Tool performanceGeneral Purpose
