Seco

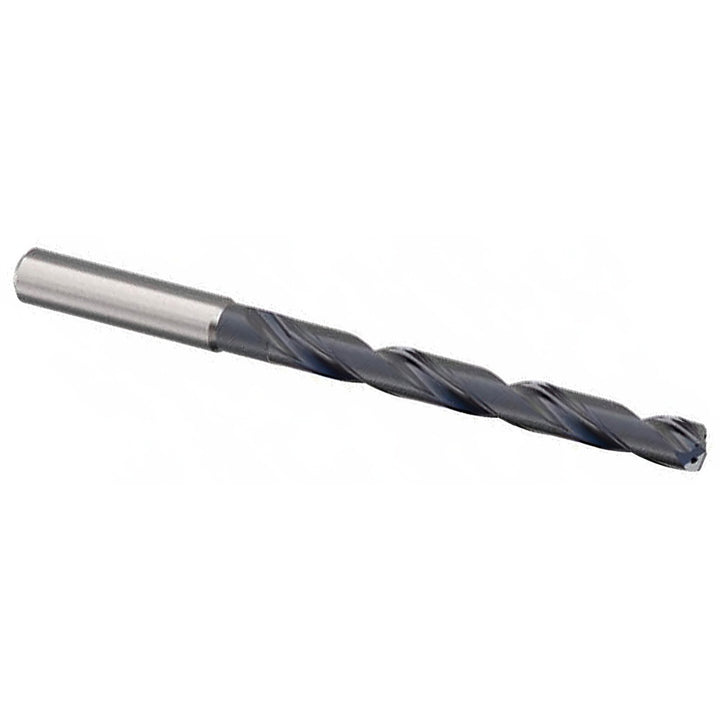

7/16" Solid Carbide Drill Bit, TiAlN, 140° point - Seco 03323700
MFR# 03323700
$336.83List $432.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size7/16
CoatingTiAlN
Description
The Seco 03323700 is a 7/16" Solid Carbide drill bit with a TiAlN finish, 140° point.
Specifications
Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit size in7/16
Drill point angle degrees140
Flute length (mm)114.00
Flute length x diameter ratio8xD
Flute typeSpiral
Maximum drilling depth (mm)96.00
Overall length (mm)163
Shank diameter (mm)12.00
Shank length (mm)45.00
Shank typeStraight-Cylindrical
Tool materialSolid Carbide
