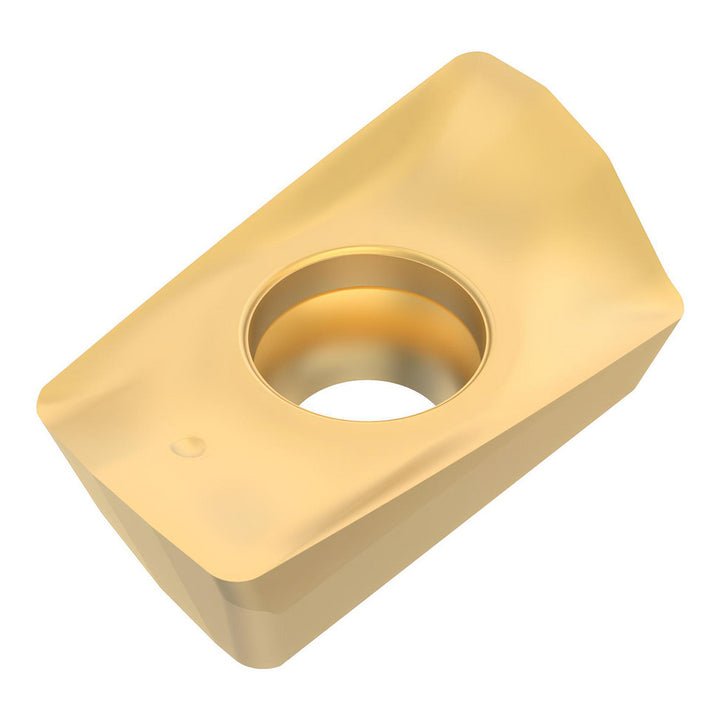

XOEX160508R-M09 Solid Carbide Insert, Grade F40M, TiAlN - Seco 10000047
MFR# 10000047ISO/ANSI# XOEX160508R-M09Cat# XOEX160508R-M09Series XOEX-16
$34.60List $44.38
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeF40M
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 10000047 is a XOEX160508R-M09 solid carbide indexable insert, grade F40M, TiAlN coated. Suited for steel, cast iron, superalloys & titanium.
Specifications
Ansi codeXOEX160508R-M09
Chip breakerM09
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-XO16; R220.69-XO16
Cutting edge effective length0.6063
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90
Inscribed circle0.4016
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160508
Insert styleXOEX
Iso codeXOEX160508R-M09
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberXOEX160508R-M09
Manufacturer gradeF40M
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6063
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron; Superalloys & Titanium
RakePositive
Rake angle14
Relief angle15.20
Secondary workpiece materialCast Iron; Non-Ferrous Metal
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2323
Thickness range0.2200 to 0.2350
Width0.4016
