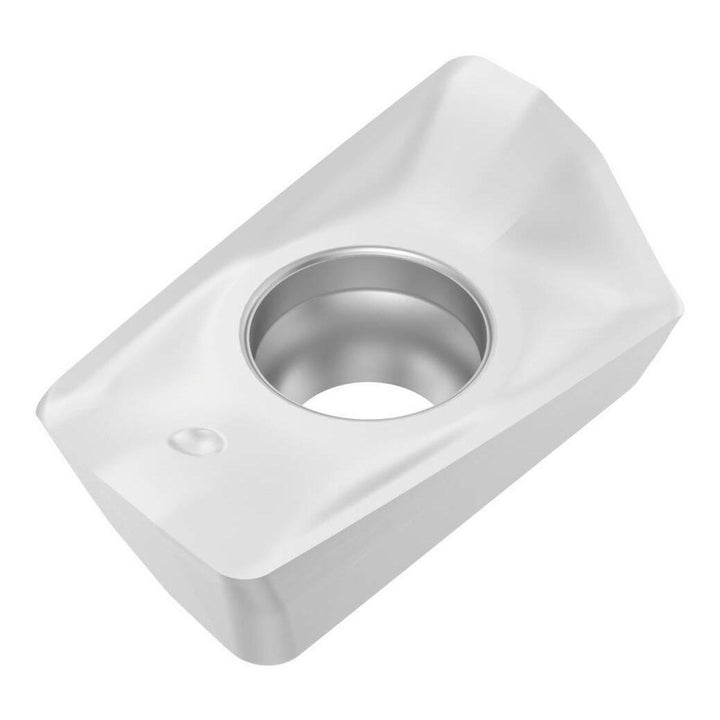

XOEX160508R-M09 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 10000048
MFR# 10000048ISO/ANSI# XOEX160508R-M09Cat# XOEX160508R-M09Series XOEX-16
$36.28List $46.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 10000048 is a XOEX160508R-M09 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeXOEX160508R-M09
Chip breakerM09
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-XO16; R220.69-XO16
Cutting edge effective length0.6063
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90
Inscribed circle0.4016
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160508
Insert styleXOEX
Iso codeXOEX160508R-M09
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberXOEX160508R-M09
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.6063
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle14
Relief angle15.20
Secondary workpiece materialSteel; Stainless Steel
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2323
Thickness range0.2200 to 0.2350
Width0.4016
