Seco

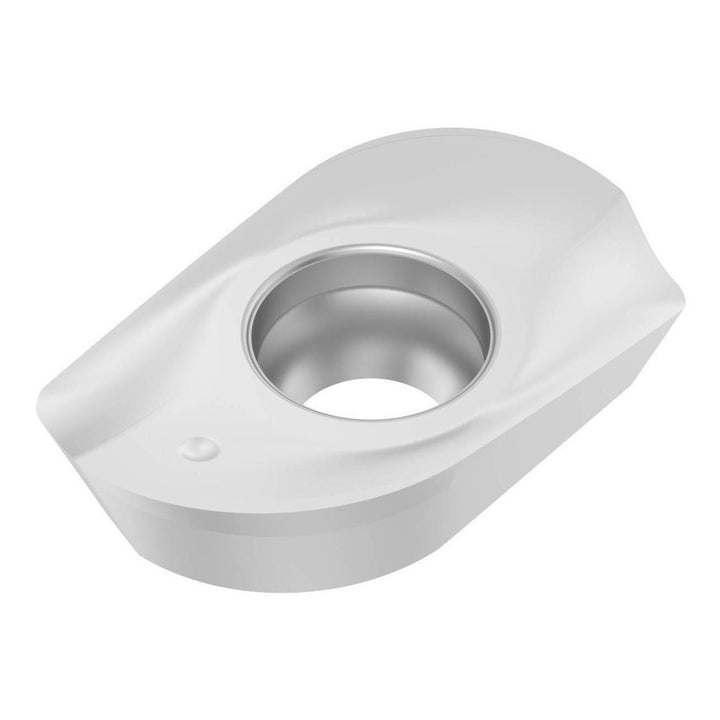

XOEX160563R-M09 Solid Carbide Insert, Grade MS2050, TiAlN - Seco 10000069
MFR# 10000069ISO/ANSI# XOEX160563R-M09Cat# XOEX160563R-M09Series XOEX-16
$44.06List $55.52
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMS2050
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 10000069 is a XOEX160563R-M09 solid carbide indexable insert, grade MS2050, TiAlN coated. Suited for superalloys & titanium.
Specifications
Ansi codeXOEX160563R-M09
Chip breakerM09
Coating finishTiAlN
Coating processPVD
Corner radius0.2480
Cutter series compatibilityR217.69-XO16; R220.69-XO16
Cutting edge effective length0.5787
Cutting edge styleHoned
Hole diameter0.1772
Included angle degree90
Inscribed circle0.4016
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160563
Insert styleXOEX
Iso codeXOEX160563R-M09
Length0.5787
Length range0.5000 to 0.6000
Manufacturers catalog numberXOEX160563R-M09
Manufacturer gradeMS2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.5787
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle14
Relief angle15.20
Secondary workpiece materialSteel; Stainless Steel
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2102
Thickness range0.2000 to 0.2200
Width0.4016
