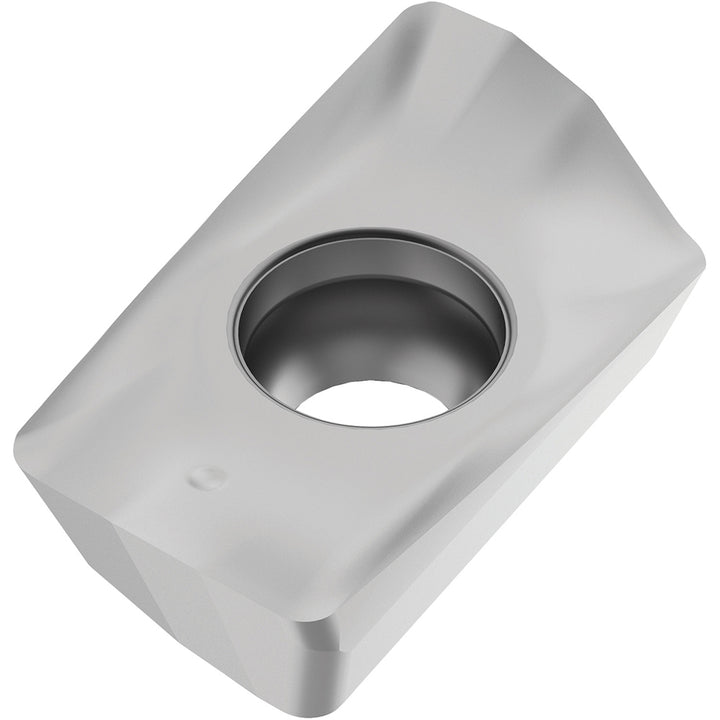

XOEX160508FR-E07 Solid Carbide Insert, Grade H25 - Seco 10000077
MFR# 10000077ISO/ANSI# XOEX160508FR-E07Cat# XOEX160508FR-E07Series XOEX-16
$31.50List $40.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeH25
MaterialSolid Carbide
Description
The Seco 10000077 is a XOEX160508FR-E07 solid carbide indexable insert, grade H25. Suited for non-ferrous metal.
Specifications
Ansi codeXOEX160508FR-E07
Chip breakerE07
Coating processUncoated
Corner radius in1/32
Cutter series compatibilityR217.69-XO16; R220.69-XO16
Cutting edge effective length0.6063
Cutting edge styleSharp
Hole diameter0.1772
Included angle degree90
Inscribed circle0.4016
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160508
Insert styleXOEX
Iso codeXOEX160508FR-E07
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberXOEX160508FR-E07
Manufacturer gradeH25
Material applicationNon-Ferrous Metal; Superalloys & Titanium
Material gradeMicrograin
Maximum depth of cut0.6063
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle23
Relief angle15.20
Secondary workpiece materialSuperalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2323
Thickness range0.2200 to 0.2350
Width0.4016
