Seco

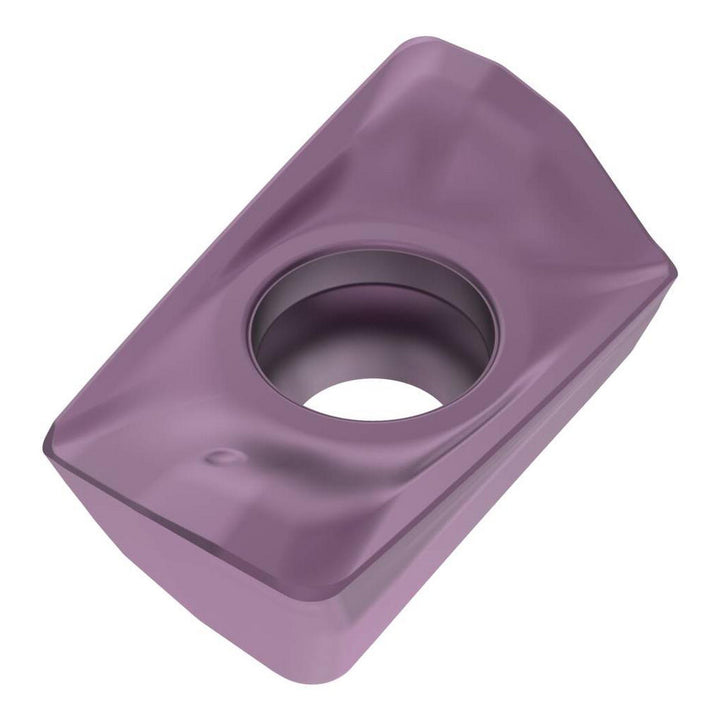

XOMX160508TR-MD14 Solid Carbide Insert, Grade MK2050, TiSiN - Seco 10001026
MFR# 10001026ISO/ANSI# XOMX160508TR-MD14Cat# XOMX160508TR-MD14Series XOMX-16
$34.11List $42.98
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMK2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 10001026 is a XOMX160508TR-MD14 solid carbide indexable insert, grade MK2050, TiSiN coated. Suited for cast iron.
Specifications
Ansi codeXOMX160508TR-MD14
Chip breakerMD14
Coating finishTiSiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityR217.69-XO16; R220.69-XO16
Cutting edge effective length0.6063
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle0.4016
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160508
Insert styleXOMX
Iso codeXOMX160508TR-MD14
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberXOMX160508TR-MD14
Manufacturer gradeMK2050
Material applicationCast Iron; Steel; Hard Material
Material gradeMedium Grain
Maximum depth of cut0.6063
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakePositive
Rake angle4
Relief angle15.20
Secondary workpiece materialSteel; Hard Material
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2366
Thickness range0.2350 to 0.2500
Width0.4016
