Seco

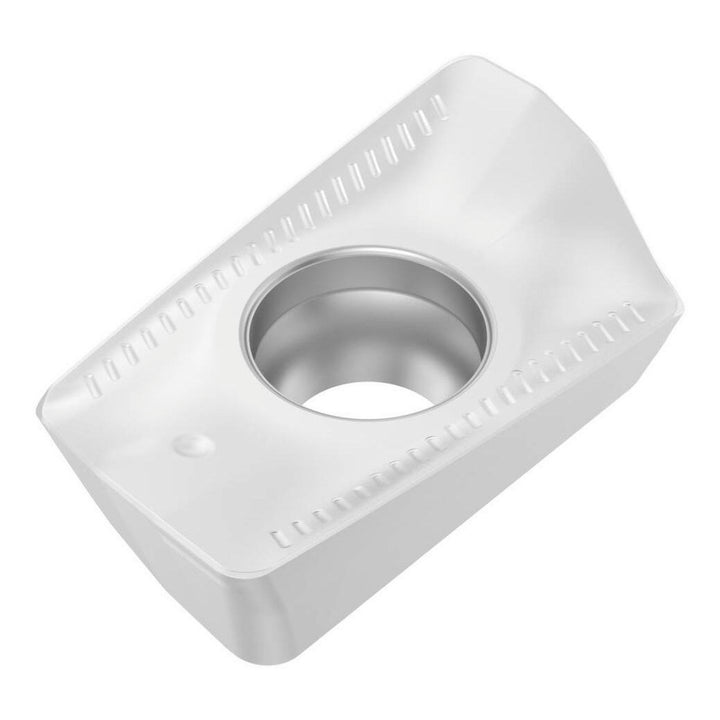

XOMX160504TR-ME11 Solid Carbide Insert, Grade MP2501, TiCN - Seco 10001030
MFR# 10001030ISO/ANSI# XOMX160504TR-ME11Cat# XOMX160504TR-ME11Series XOMX-16
$28.88List $37.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 10001030 is a XOMX160504TR-ME11 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeXOMX160504TR-ME11
Chip breakerME11
Coating finishTiCN
Coating processCVD
Corner radius in1/64
Cutter series compatibilityR217.69-XO16; R220.69-XO16
Cutting edge effective length0.6063
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle0.4016
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160504
Insert styleXOMX
Iso codeXOMX160504TR-ME11
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberXOMX160504TR-ME11
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6063
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle19
Relief angle15.20
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness in15/64
Thickness range0.2200 to 0.2350
Width0.4016
