Seco

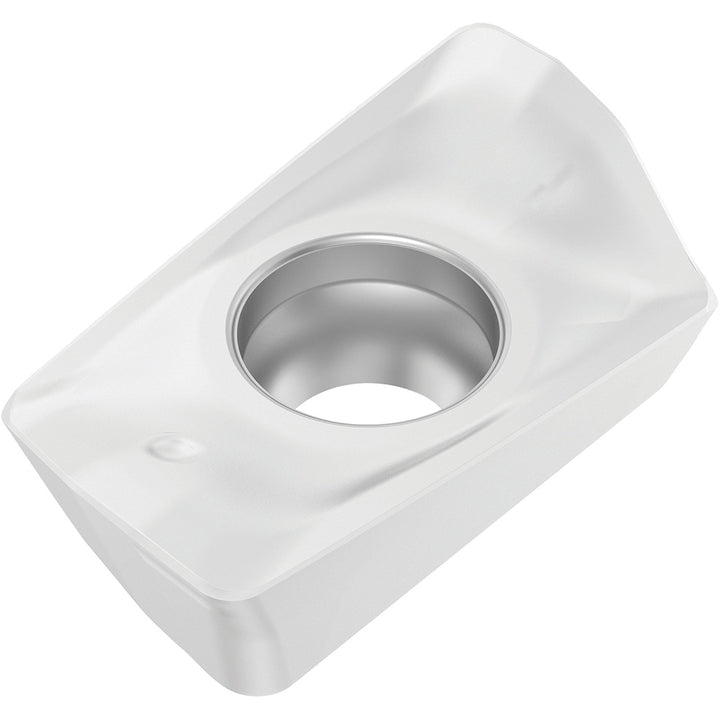

XOMX160508TR-M13 Solid Carbide Insert, Grade MP2501, TiCN - Seco 10001049
MFR# 10001049ISO/ANSI# XOMX160508TR-M13Cat# XOMX160508TR-M13Series XOMX-16
$28.88List $37.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP2501
MaterialSolid Carbide
CoatingTiCN
Description
The Seco 10001049 is a XOMX160508TR-M13 solid carbide indexable insert, grade MP2501, TiCN coated. Suited for steel.
Specifications
Ansi codeXOMX160508TR-M13
Chip breakerM13
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutter series compatibilityR217.69-XO16; R220.69-XO16
Cutting edge effective length0.6063
Cutting edge styleT-Land
Hole diameter0.1772
Included angle degree90
Inscribed circle0.4016
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size16
Insert size code160508
Insert styleXOMX
Iso codeXOMX160508TR-M13
Length0.6063
Length range0.6000 to 0.6500
Manufacturers catalog numberXOMX160508TR-M13
Manufacturer gradeMP2501
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.6063
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle9
Relief angle15.20
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
ShapeParallelogram
Single or double sided insertSingle
StandardsISO
Thickness0.2354
Thickness range0.2350 to 0.2500
Width0.4016
