Seco
1/4-28 UNJF HSS-E-PM Spiral Point Tap, AlCrN - Seco 10001184
MFR# 10001184Series MTP
$58.26List $74.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingAlCrN
Description

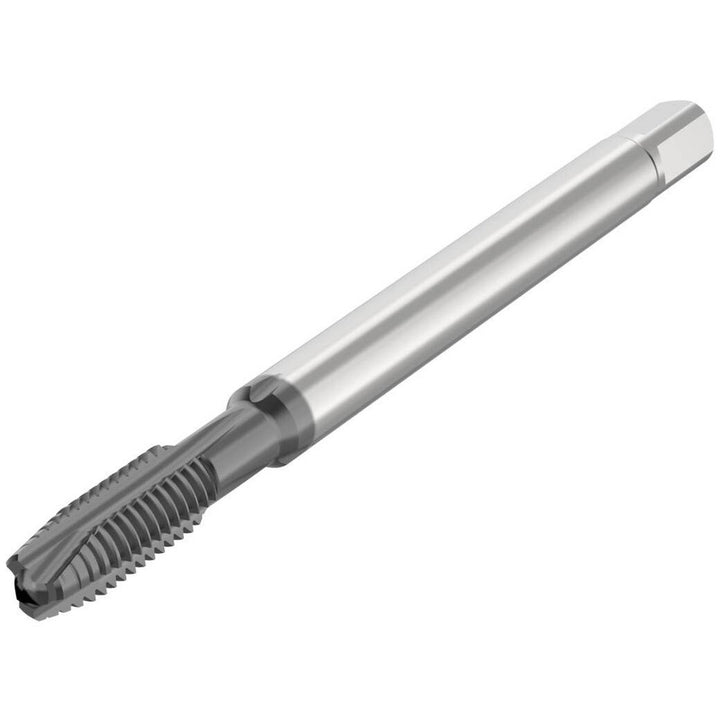

The Seco 10001184 is a 1/4-28 UNJF HSS-E-PM Spiral Point tap with a AlCrN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishAlCrN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E-PM
Material applicationStainless Steel; Non-Ferrous Metal; Superalloys & Titanium; Hardened Steel
Neck length0.3937
Number of flutes3
Overall length3.2559
OversizeNo
Shank diameter0.2756
StyleSpiral Point
Threads per inch28
Thread directionRight Hand
Thread length0.5906
Thread pitch0.0357
Thread size in1/4-28
Thread standardUNJF
