Seco

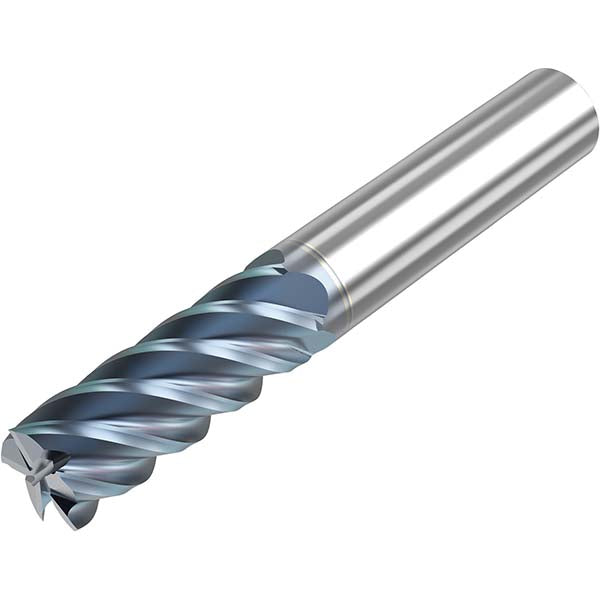

1/4" 5-Flute Solid Carbide Square End Mill, HTA - Seco 10008048

MFR# 10008048Series S545

$49.20List $63.10 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingHTA

Description

The Seco 10008048 is a 1/4 5-flute Solid Carbide (Micrograin) square end mill with a HTA finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 3/8 length of cut, 2 overall length. Series S545.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishHTA

Coating finish familyHTA

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/8

Length typeShort

Material gradeMicrograin

Mill diameter in1/4

Number of flutes5

Overall length in2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials

Shank diameter in1/4

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
