1/2" 5-Flute Solid Carbide Square End Mill, HTA - Seco 10008059

Seco

1/2" 5-Flute Solid Carbide Square End Mill, HTA - Seco 10008059

MFR# 10008059Series S545

$116.95List $150.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingHTA

Description

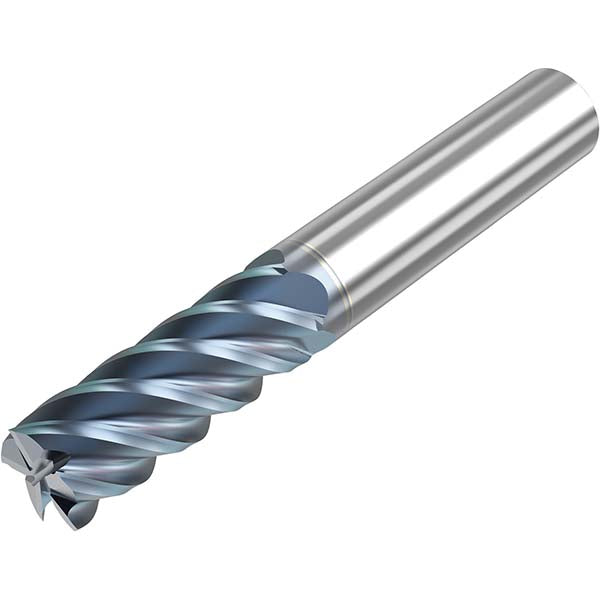

The Seco 10008059 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a HTA finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy, aluminum & non-ferrous, hardened materials. 5/8 length of cut, 2-1/2 overall length. Series S545.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishHTA
Coating finish familyHTA
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in5/8
Length typeStub
Material gradeMicrograin
Mill diameter in1/2
Number of flutes5
Overall length in2-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy; Aluminum & Non-Ferrous; Hardened Materials
Shank diameter in1/2
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
