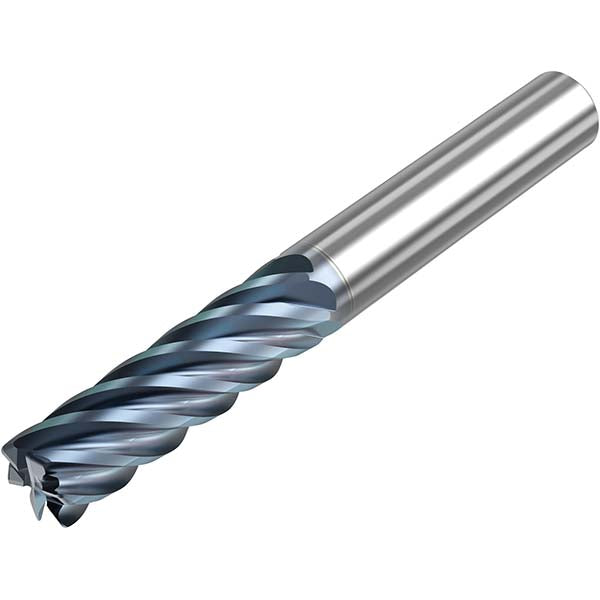

1/2" 6-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008085

Seco

1/2" 6-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008085

MFR# 10008085Series S638R

$180.11List $231.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingHTA

Description

The Seco 10008085 is a 1/2 6-flute Solid Carbide corner radius end mill with a HTA finish for longer tool life. Suited for stainless steel. 1-5/8 length of cut, 4 overall length. Series S638R.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishHTA
Coolant throughNo
Corner radius0.0300
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-5/8
Length typeStandard
Mill diameter in1/2
Mill diameter tolerance+0.000000/-0.002000 in
Number of flutes6
Overall length in4
Overall length tolerance+0.0600/-0.0600 in
PitchClose
Primary workpiece materialStainless Steel
Shank diameter in1/2
Shank diameter tolerance-0.0001 - -0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
