Seco

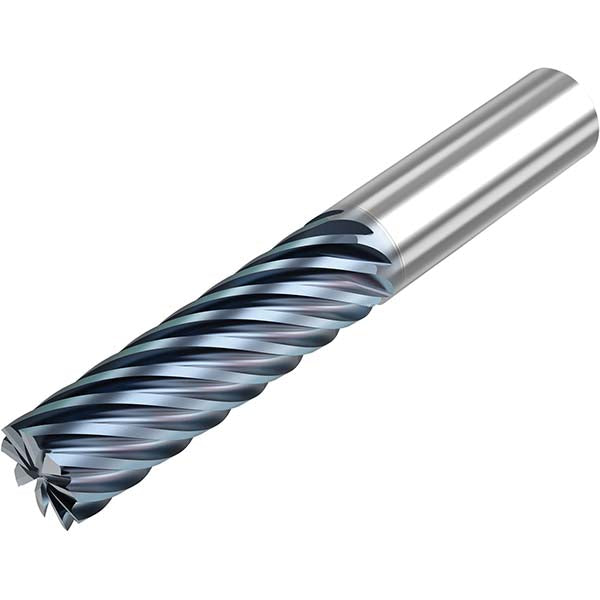

3/4" 9-Flute Solid Carbide Square End Mill, HTA - Seco 10008119

MFR# 10008119Series S938

$390.63List $501.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes9

MaterialSolid Carbide

CoatingHTA

Description

The Seco 10008119 is a 3/4 9-flute Solid Carbide (Micrograin) square end mill with a HTA finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1-5/8 length of cut, 4 overall length. Series S938.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishHTA

Coating finish familyHTA

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle38

Length of cut in1-5/8

Length typeShort

Material gradeMicrograin

Mill diameter in3/4

Number of flutes9

Overall length in4

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Shank diameter in3/4

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
