Seco

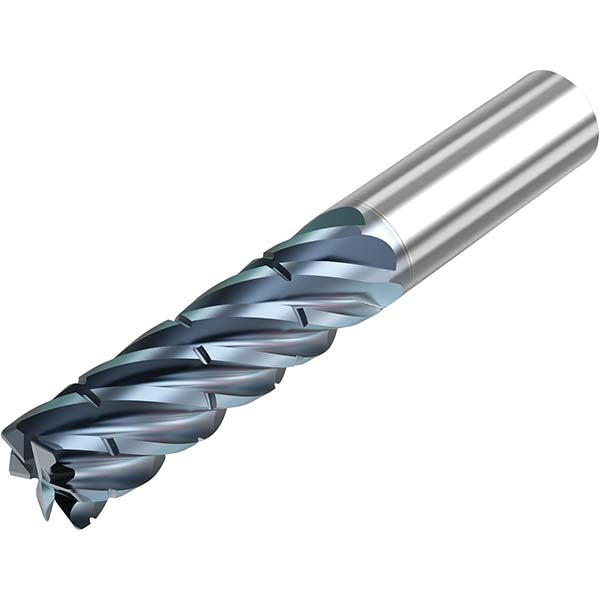

1/2" 6-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008417
MFR# 10008417Series SCS638R
$197.26List $253.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes6
MaterialSolid Carbide
CoatingHTA
Description
The Seco 10008417 is a 1/2 6-flute Solid Carbide corner radius end mill with a HTA finish for longer tool life. 1-5/8 length of cut, 4 overall length. Series SCS638R.
Specifications
CentercuttingYes
ChipbreakerYes
Coating finishHTA
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in1-5/8
Length typeStandard
Mill diameter in1/2
Number of flutes6
Overall length in4
PitchClose
Shank diameter in1/2
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
