Seco

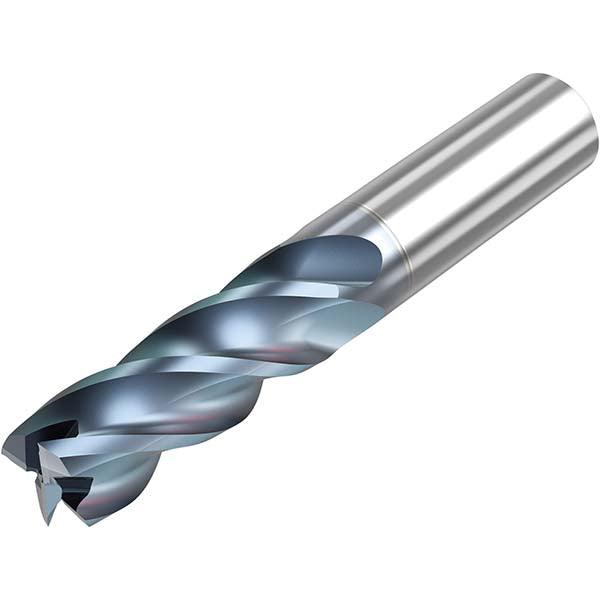

1/8" 4-Flute Solid Carbide Square End Mill, HTA - Seco 10008525

MFR# 10008525Series STS430.2

$29.48List $37.81 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes4

MaterialSolid Carbide

CoatingHTA

Description

The Seco 10008525 is a 1/8 4-flute Solid Carbide (Micrograin) square end mill with a HTA finish for longer tool life. Suited for steel, cast iron, aluminum & non-ferrous. 3/8 length of cut, 1-1/2 overall length. Series STS430.2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishHTA

Coating finish familyHTA

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in3/8

Length typeStandard

Material gradeMicrograin

Mill diameter in1/8

Number of flutes4

Overall length in1-1/2

Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous

Shank diameter in1/8

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
