5/32" 4-Flute Solid Carbide Square End Mill, HTA - Seco 10008526

Seco

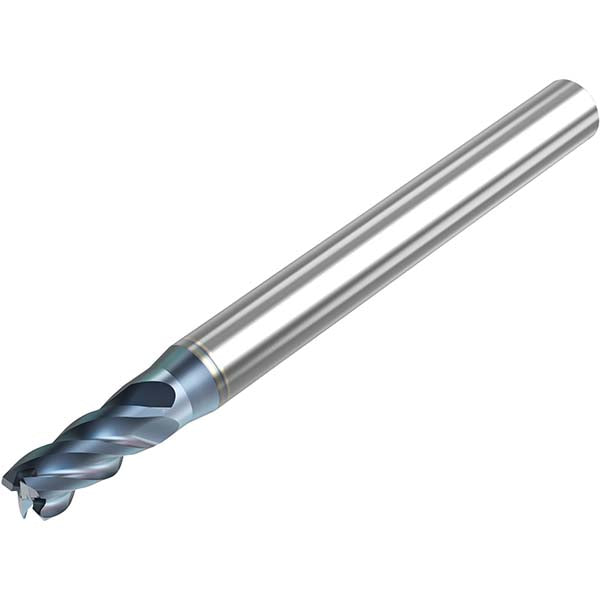

5/32" 4-Flute Solid Carbide Square End Mill, HTA - Seco 10008526

MFR# 10008526Series STS430.2

$52.32List $67.10 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/32
Flutes4
MaterialSolid Carbide
CoatingHTA

Description

The Seco 10008526 is a 5/32 4-flute Solid Carbide (Micrograin) square end mill with a HTA finish for longer tool life. Suited for steel, cast iron, aluminum & non-ferrous. 15/32 length of cut, 2 overall length. Series STS430.2.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishHTA
Coating finish familyHTA
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in15/32
Length typeStandard
Material gradeMicrograin
Mill diameter in5/32
Number of flutes4
Overall length in2
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter in3/16
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexNo
