Seco

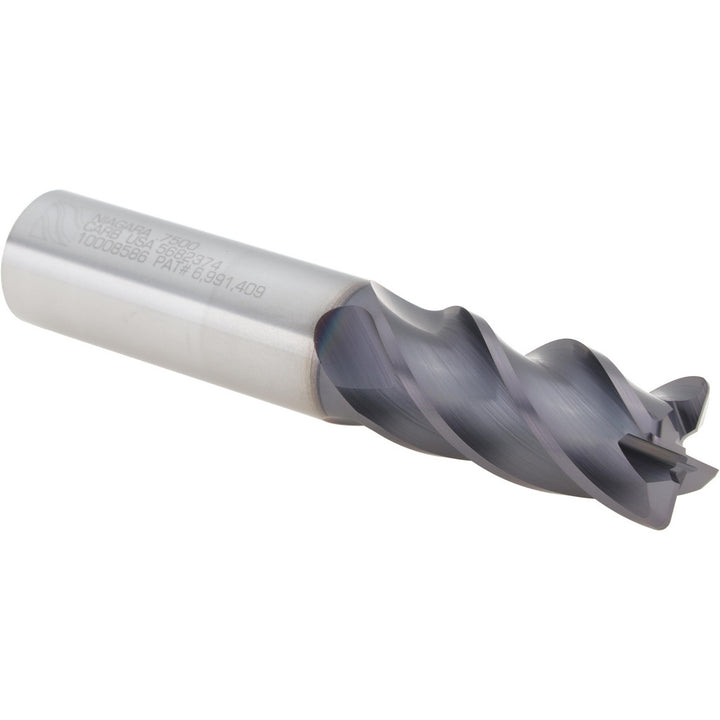

3/4" 4-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10008586

MFR# 10008586Series STR440.2

$420.26List $539.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingHTA

Description

The Seco 10008586 is a 3/4 4-flute Solid Carbide corner radius end mill with a HTA finish for longer tool life. 1-1/2 length of cut, 4 overall length. Series STR440.2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishHTA

Coolant throughNo

Corner radius0.0600

Corner radius tolerance+0.00100 to -0.00100 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1-1/2

Length typeShort

Mill diameter in3/4

Mill diameter tolerance+0.000100/-0.002000 in

Number of flutes4

Overall length in4

Overall length tolerance+0.0600/-0.0600 in

PitchNormal

Shank diameter in3/4

Shank diameter tolerance-0.0001 - -0.0004 in

Shank typeWeldon Flat

Single or double endSingle

Tir maximum0.0005

Variable helixYes

Variable indexNo
