Seco

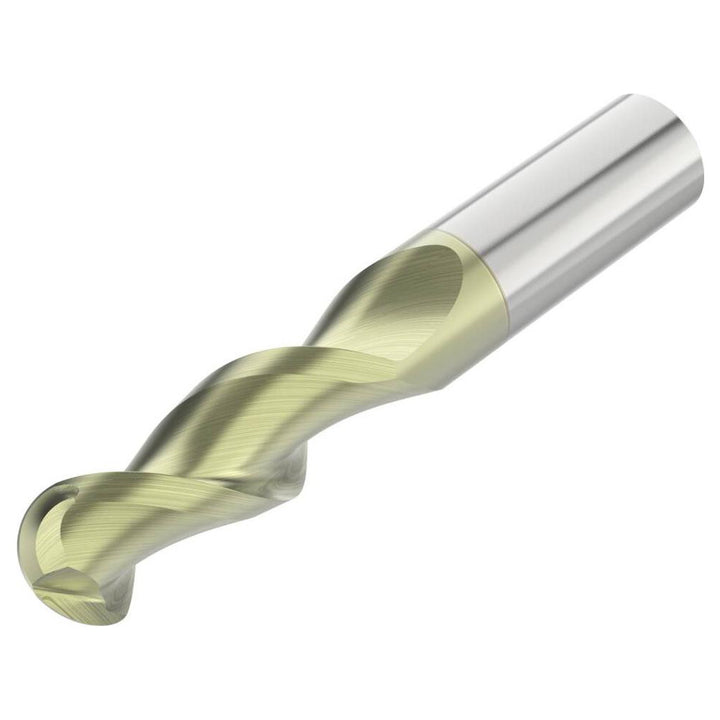

3/8" 2-Flute Solid Carbide Ball End Mill, ANF - Seco 10022736

MFR# 10022736Cat# AB245-0.375-D3-B.0-Z2Series AB245

$69.12List $88.65 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes2

MaterialSolid Carbide

CoatingANF

Description

The Seco 10022736 is a 3/8 2-flute Solid Carbide ball end mill with a ANF finish for longer tool life. Suited for aluminum & non-ferrous. 1 length of cut, 2-1/2 overall length. Series AB245.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishANF

Coating finish familyANF

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Helix styleHigh

Length of cut in1

Length typeStandard

Manufacturers catalog numberAB245-0.375-D3-B.0-Z2

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter tolerance+0.0000/-0.0020 in

Neck length0.0000

Nose radius0.1875

Number of flutes2

Overall length in2-1/2

Overall length tolerance+0.0600/-0.0600 in

Primary workpiece materialAluminum & Non-Ferrous

Reach length1.0000

Shank diameter in3/8

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
