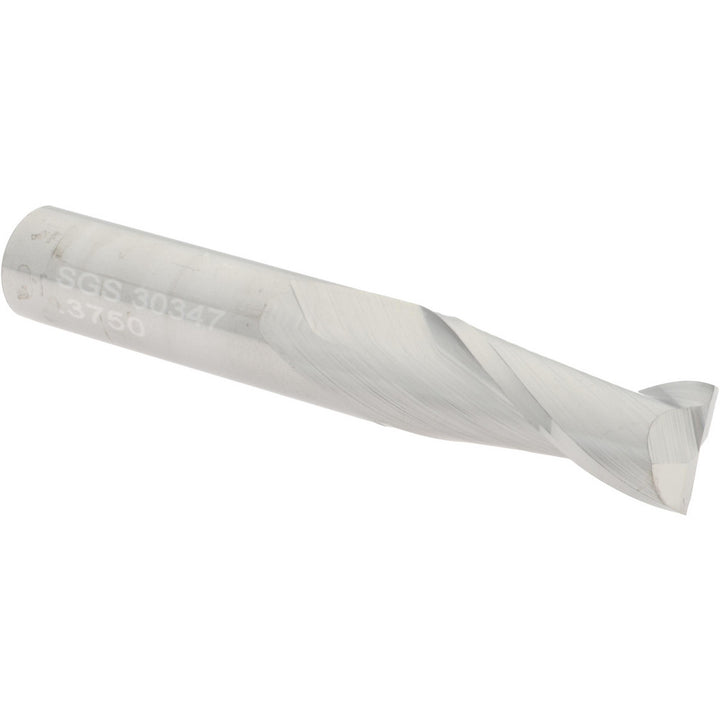

3/8" 2-Flute Solid Carbide Square End Mill - SGS 30347

SGS

3/8" 2-Flute Solid Carbide Square End Mill - SGS 30347

MFR# 30347Series 3

$39.82List $51.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes2
MaterialSolid Carbide

Description

The SGS 30347 is a 3/8 2-flute Solid Carbide (Micrograin) square end mill. 1 length of cut, 2-1/2 overall length. Series 3.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter in3/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes2
Overall length in2-1/2
Shank diameter in3/8
Shank diameter tolerance+0.00000/-0.00035 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
