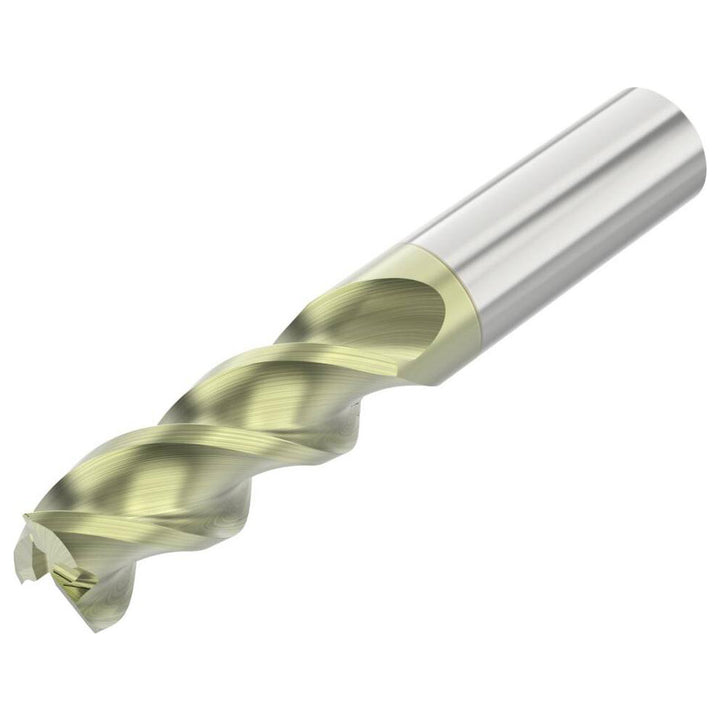

1/8" 3-Flute Solid Carbide Corner Radius End Mill, ANF - Seco 10023036

Seco

1/8" 3-Flute Solid Carbide Corner Radius End Mill, ANF - Seco 10023036

MFR# 10023036Series A345R

$35.88List $46.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes3
MaterialSolid Carbide
CoatingANF

Description

The Seco 10023036 is a 1/8 3-flute Solid Carbide corner radius end mill with a ANF finish for longer tool life. Suited for non-ferrous metal. 3/8 length of cut, 1-1/2 overall length. Series A345R.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishANF
Coolant throughNo
Corner radius0.0100
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleHigh
Length of cut in3/8
Length typeStandard
Material applicationNon-Ferrous Metal
Material removal typeRoughing & Finishing
Mill diameter in1/8
Mill diameter tolerance-0.0020/0.0000 in
Number of flutes3
Overall length in1-1/2
Overall length tolerance-0.0600/0.0600 in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
