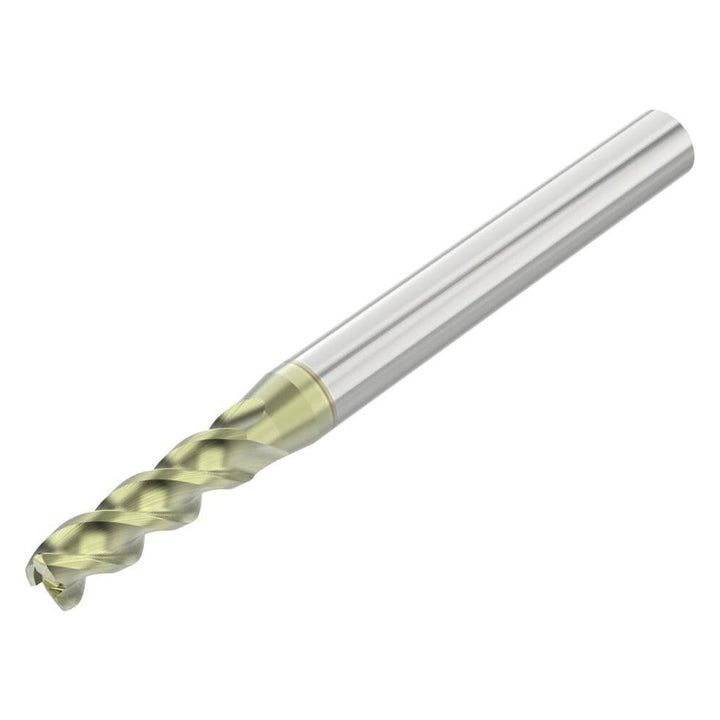

5/32" 3-Flute Solid Carbide Corner Radius End Mill, ANF - Seco 10023041

MFR# 10023041Series A345R

$48.26List $61.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/32

Flutes3

MaterialSolid Carbide

CoatingANF

Description

The Seco 10023041 is a 5/32 3-flute Solid Carbide corner radius end mill with a ANF finish for longer tool life. Suited for non-ferrous metal. 1/2 length of cut, 2 overall length. Series A345R.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishANF

Coolant throughNo

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1/2

Length typeStandard

Material applicationNon-Ferrous Metal

Material removal typeRoughing & Finishing

Mill diameter in5/32

Mill diameter tolerance-0.0020/0.0000 in

Neck diameter0.1560

Number of flutes3

Overall length in2

Overall length tolerance-0.0600/0.0600 in

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in1/2

Shank diameter in3/16

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
