Seco

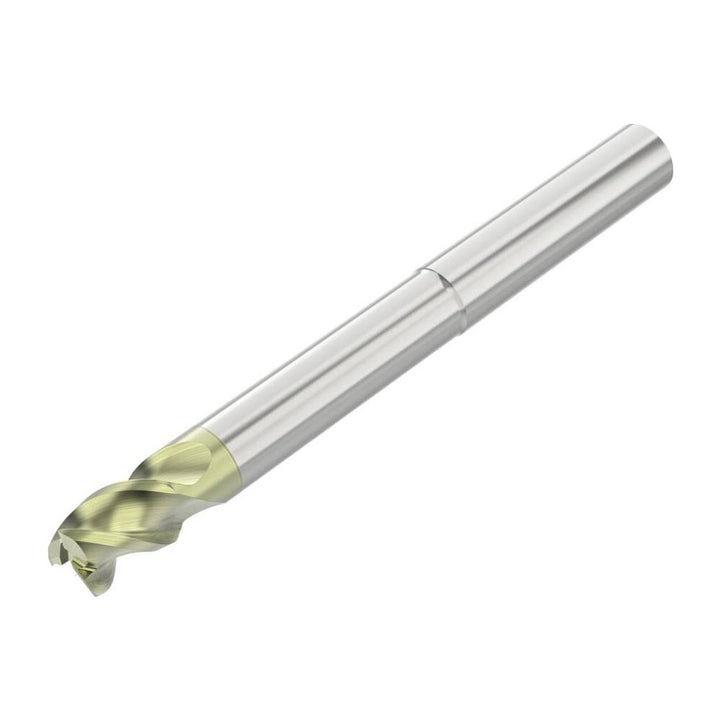

3/4" 3-Flute Solid Carbide Corner Radius End Mill, ANF - Seco 10023162

MFR# 10023162Series AN345R

$459.24List $589.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes3

MaterialSolid Carbide

CoatingANF

Description

The Seco 10023162 is a 3/4 3-flute Solid Carbide corner radius end mill with a ANF finish for longer tool life. Suited for non-ferrous metal. 1 length of cut, 6 overall length. Series AN345R.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishANF

Coolant throughNo

Corner radius0.0100

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholders

Helix styleHigh

Length of cut in1

Length typeStandard

Material applicationNon-Ferrous Metal

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance-0.0020/0.0000 in

Neck diameter0.7200

Number of flutes3

Overall length in6

Overall length tolerance-0.0600/0.0600 in

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length in3-1/2

Shank diameter in3/4

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixNo

Variable indexNo
