Seco

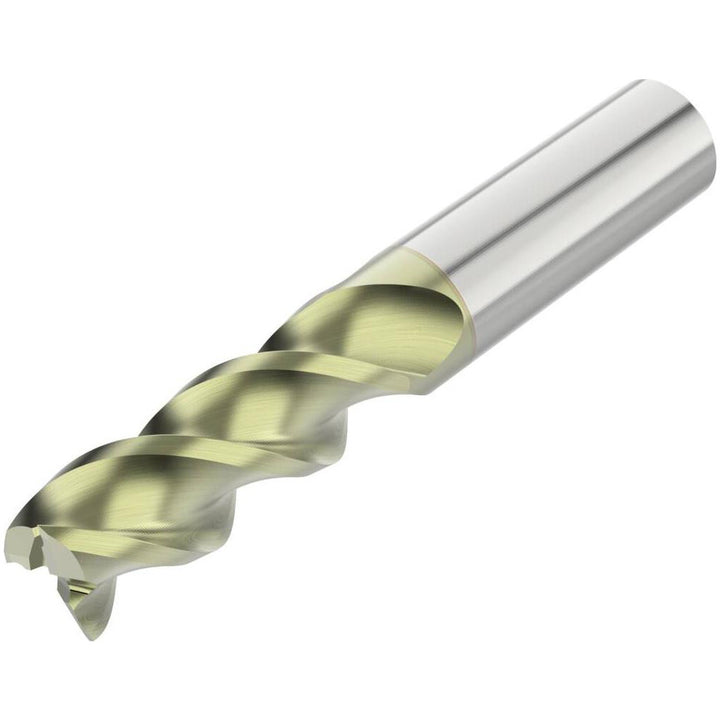

0.3150" 3-Flute Solid Carbide Square End Mill, ANF - Seco 10023172

MFR# 10023172Series A345

$63.39List $81.30 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingANF

Description

The Seco 10023172 is a 0.3150 3-flute Solid Carbide (Micrograin) square end mill with a ANF finish for longer tool life. Suited for aluminum & non-ferrous. Series A345.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishANF

Coating finish familyANF

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut (mm)20.00

Length typeShort

Material gradeMicrograin

Mill diameter0.3150

Mill diameter tolerance0.0508 mm

Number of flutes3

Overall length (mm)64.00

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter0.3150

Shank typeStraight

Single or double endSingle

System of measurementMetric

Tir maximum (mm)0.01

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
