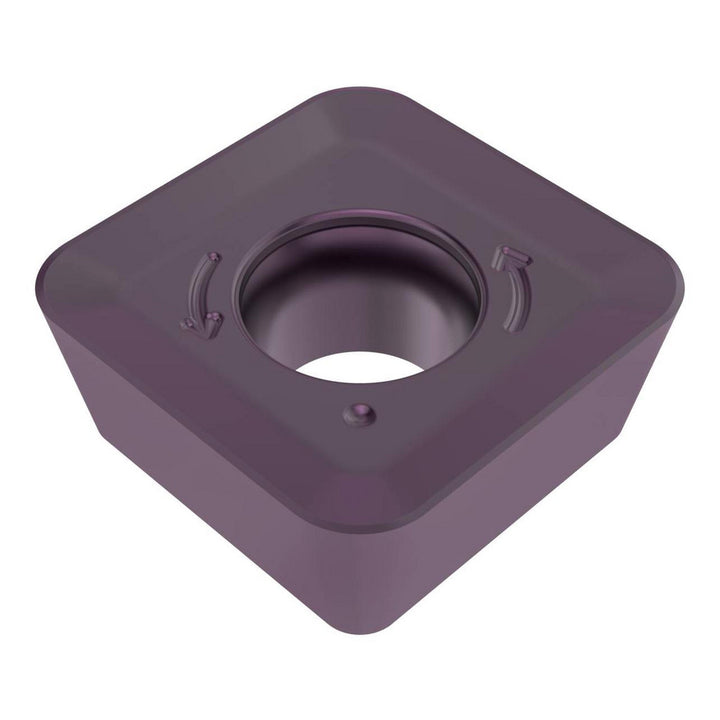

SPKT140523TN-M14 Solid Carbide Insert, Grade MP2050, TiSiN - Seco 10068958
MFR# 10068958ISO/ANSI# SPKT140523TN-M14Cat# SPKT140523TN-M14Series SPKT-14
$30.07List $38.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeMP2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 10068958 is a SPKT140523TN-M14 solid carbide indexable insert, grade MP2050, TiSiN coated.
Specifications
Ansi codeSPKT140523TN-M14
Chip breakerM14
Coating finishTiSiN
Coating processPVD
Concave radius0.0910
Corner radius0.0906
Cutter series compatibilityR217.21-SP14; R220.21-SP14
Cutting edge effective length0.5512
Cutting edge styleHigh Feed Rate; Single Sided
Hole diameter0.2205
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140523
Insert styleSPKT
Iso codeSPKT140523TN-M14
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSPKT140523TN-M14
Manufacturer gradeMP2050
Material applicationStainless Steel; Austenitic Stainless Steel
Material gradeFine Grain
Maximum depth of cut0.5512
Multi use toolYes
Number of cutting edges4
RakePositive
Rake angle13
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.5512
