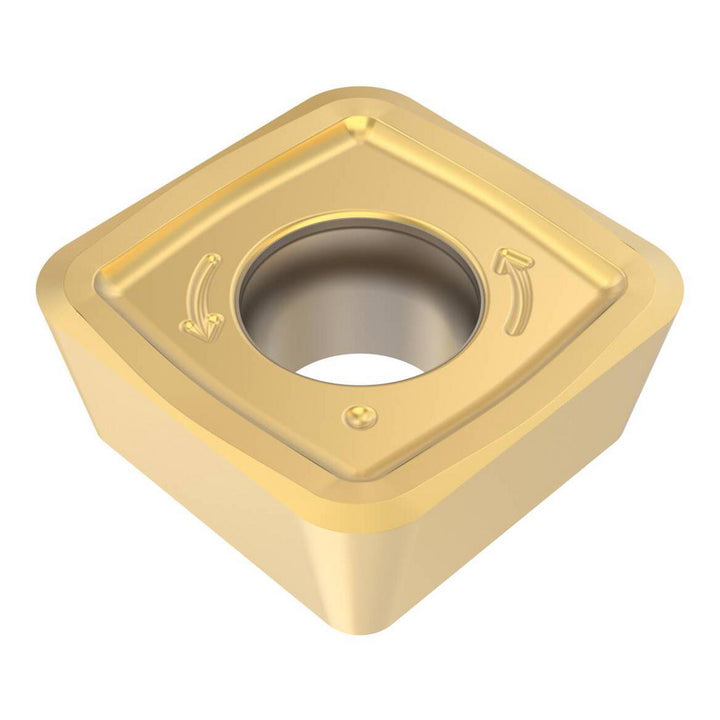

SPKT140523TN-MD16 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 10068965
MFR# 10068965ISO/ANSI# SPKT140523TN-MD16Cat# SPKT140523TN-MD16Series SPKT-14
$25.85List $33.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN
Description
The Seco 10068965 is a SPKT140523TN-MD16 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.
Specifications
Ansi codeSPKT140523TN-MD16
Chip breakerMD16
Coating finishTiAlN
Coating processPVD
Concave radius0.0910
Corner radius0.0906
Cutter series compatibilityR217.21-SP14; R220.21-SP14
Cutting edge effective length0.5512
Cutting edge styleHigh Feed Rate; Single Sided
Hole diameter0.2205
Included angle degree90
Inscribed circle0.5512
Inscribed circle range0.5100 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size14
Insert size code140523
Insert styleSPKT
Iso codeSPKT140523TN-MD16
Length0.5512
Length range0.5000 to 0.6000
Manufacturers catalog numberSPKT140523TN-MD16
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.5512
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakePositive
Rake angle5
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in7/32
Thickness range0.2000 to 0.2200
Width0.5512
