Seco

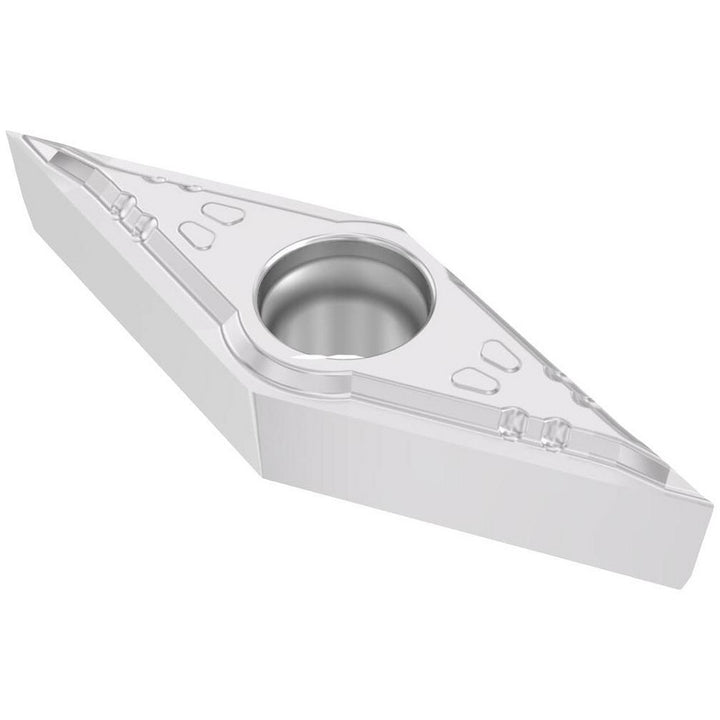

VBMT160408-F1 Carbide Insert, Grade TH1501, TiCN - Seco 10070646
MFR# 10070646ISO/ANSI# VBMT160408Series VBMT-F1
$22.74List $29.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeTH1501
MaterialCarbide
CoatingTiCN
Description
The Seco 10070646 is a VBMT160408-F1 carbide indexable insert, grade TH1501, TiCN coated. Suited for hard material.
Specifications
Ansi insert codeVBMT332
Ansi size code332
Chip breakerF1
Chip breaker operationFinishing
Clearance codeB
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsHardened Materials (H) - Moderate Wear-Resistance and Toughness
Hole diameter0.1772
Included angle35
Industry standard numberVBMT332-F1
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3078
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160408-F1
Iso insert codeVBMT160408
Iso size code160408
Lead angle35
Length range0.7000 - 10.0000
Manufacturers catalog number10070646
Manufacturer gradeTH1501
Material gradeH10; H15
Maximum depth of cut0.5748
Multi use applicationBack Turning; Facing; Profiling; Turning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Relief angle5
Secondary workpiece materialCast Iron
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
