Seco

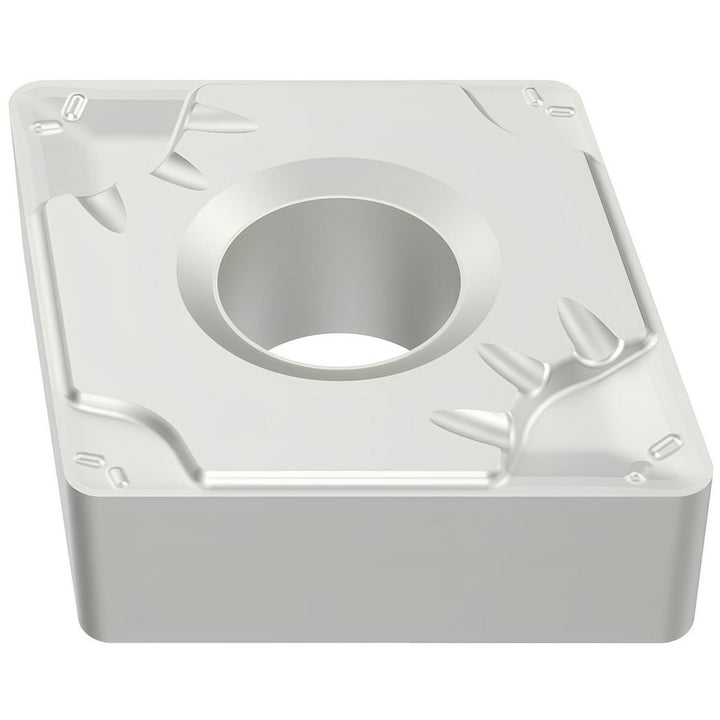

CNMG120408-MF5 Carbide Insert, Grade TH1501, TiCN - Seco 10070656
MFR# 10070656ISO/ANSI# CNMG432-MF5Series CNMG-MF5
$19.62List $25.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeTH1501
MaterialCarbide
CoatingTiCN
Description
The Seco 10070656 is a CNMG120408-MF5 carbide indexable insert, grade TH1501, TiCN coated. Suited for hard material.
Specifications
Chip breakerMF5
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2028
Included angle80degree
Industry standard numberCNMG432-MF5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120408-MF5
Lead angle80degree
Length range0.5000 - 0.6000
Manufacturers catalog number10070656
Manufacturer gradeTH1501
Material gradeH10; H15
Maximum depth of cut0.1063
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
