Seco

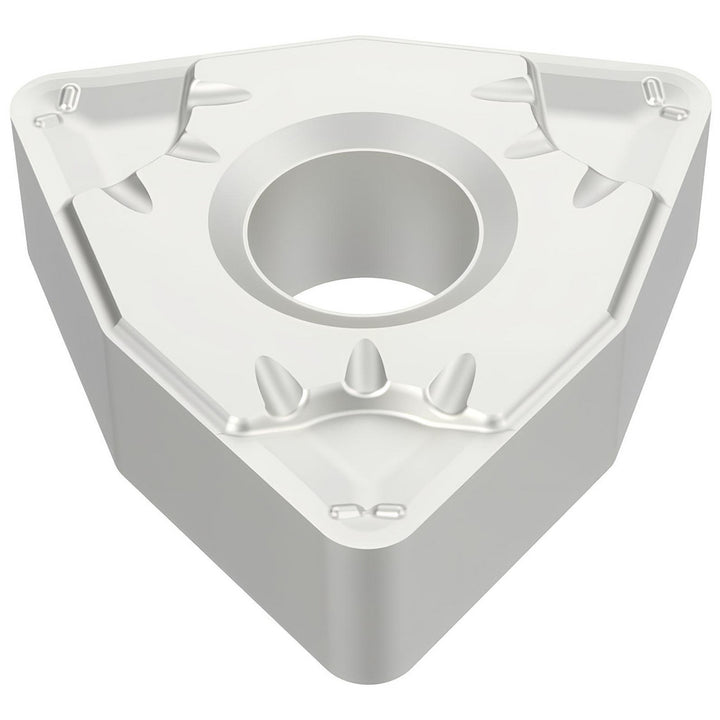

WNMG080408-MF5 Carbide Insert, Grade TH1501, TiCN - Seco 10070657
MFR# 10070657ISO/ANSI# WNMG080402Series WNMG-MF5
$19.62List $25.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeTH1501
MaterialCarbide
CoatingTiCN
Description
The Seco 10070657 is a WNMG080408-MF5 carbide indexable insert, grade TH1501, TiCN coated. Suited for hard material.
Specifications
Ansi insert codeWNMG432
Ansi size code432
Chip breakerMF5
Chip breaker operationFinishing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsHardened Materials (H) - Moderate Wear-Resistance and Toughness
Hole diameter0.2028
Included angle80
Industry standard numberWNMG432-MF5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin; Lever Lock
Insert length0.6850
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-MF5
Iso insert codeWNMG080402
Iso size code080402
Lead angle80
Length range0.6500 - 0.7000
Manufacturers catalog number10070657
Manufacturer gradeTH1501
Material gradeH10; H15
Maximum depth of cut0.1063
Multi use applicationBoring; Facing; Turning
Multi use toolYes
Number of cutting edges6
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Secondary workpiece materialCast Iron
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
