Seco

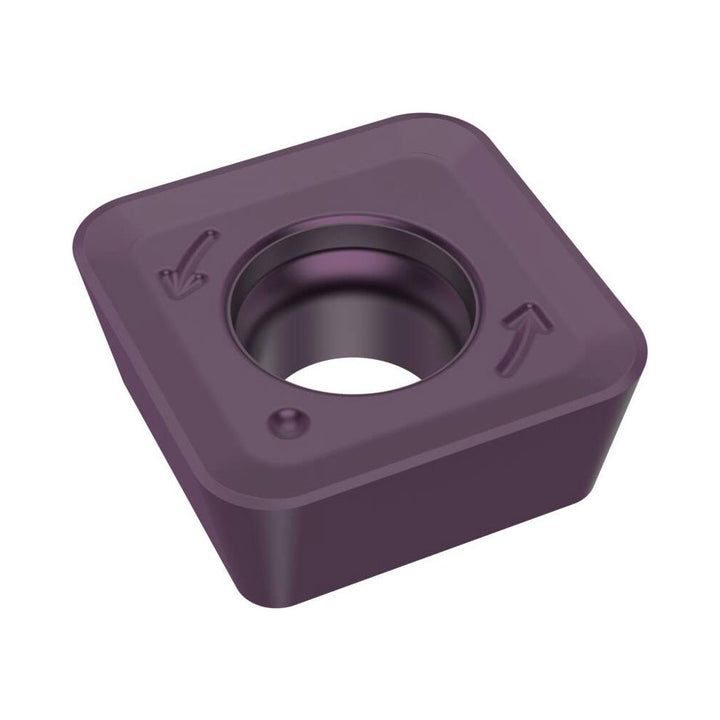

SPKT10T317TN-M10 Solid Carbide Insert, Grade MP2050, TiSiN - Seco 10098026
MFR# 10098026ISO/ANSI# SPKT10T317TN-M10Cat# SPKT10T317TN-M10Series SPKT-10
$36.93
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeMP2050
MaterialSolid Carbide
CoatingTiSiN
Description
The Seco 10098026 is a SPKT10T317TN-M10 solid carbide indexable insert, grade MP2050, TiSiN coated.
Specifications
Ansi codeSPKT10T317TN-M10
Chip breakerM10
Coating finishTiSiN
Coating processPVD
Corner radius0.0669
Cutter series compatibilityR217.21-SP10; R220.21-SP10
Cutting edge effective length0.3937
Cutting edge styleT-Land
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code10T317
Insert styleSPKT
Iso codeSPKT10T317TN-M10
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberSPKT10T317TN-M10
Manufacturer gradeMP2050
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeFine Grain
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
RakePositive
Rake angle13
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3937
