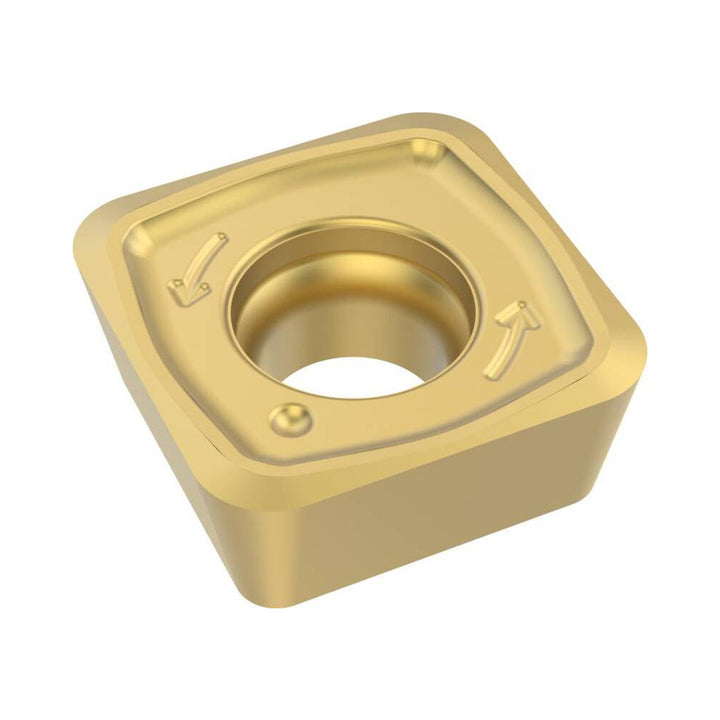

SPKT10T317TN-MD12 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 10098034

Seco

SPKT10T317TN-MD12 Solid Carbide Insert, Grade MP3000, TiAlN - Seco 10098034

MFR# 10098034ISO/ANSI# SPKT10T317TN-MD12Cat# SPKT10T317TN-MD12Series SPKT-10

$20.71List $26.56 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeSquare
GradeMP3000
MaterialSolid Carbide
CoatingTiAlN

Description

The Seco 10098034 is a SPKT10T317TN-MD12 solid carbide indexable insert, grade MP3000, TiAlN coated. Suited for hard material.

Specifications

Ansi codeSPKT10T317TN-MD12
Chip breakerMD12
Coating finishTiAlN
Coating processPVD
Corner radius0.0669
Cutter series compatibilityR217.21-SP10; R220.21-SP10
Cutting edge effective length0.3937
Cutting edge styleT-Land
Hole diameter0.1614
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size10
Insert size code10T317
Insert styleSPKT
Iso codeSPKT10T317TN-MD12
Length0.3937
Length range0.3200 to 0.4000
Manufacturers catalog numberSPKT10T317TN-MD12
Manufacturer gradeMP3000
Material applicationSteel; Stainless Steel; Hard Material
Material gradeMicrograin
Maximum depth of cut0.3937
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakePositive
Rake angle5
Relief angle11.00
Secondary workpiece materialSteel; Stainless Steel
ShapeSquare
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width0.3937
