Seco

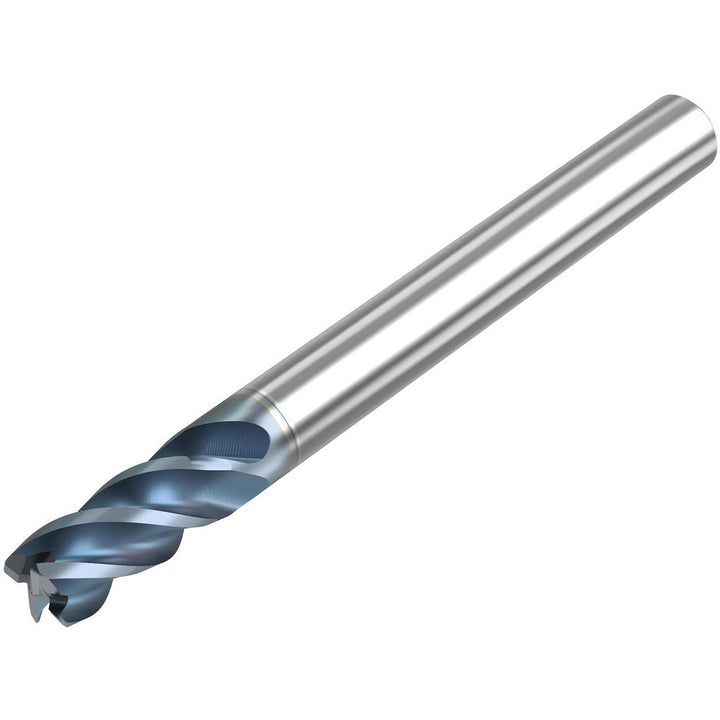

1/4" 4-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10115924

MFR# 10115924Series STR440.2

$64.32List $82.50 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingHTA

Description

The Seco 10115924 is a 1/4 4-flute Solid Carbide corner radius end mill with a HTA finish for longer tool life. 1/2 length of cut, 2-1/2 overall length. Series STR440.2.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishHTA

Coolant throughNo

Corner radius0.0625

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleMedium

Length of cut in1/2

Length typeShort

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance-0.0020/+0.0000

Number of flutes4

Overall length in2-1/2

PitchNormal

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixYes

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
