Seco

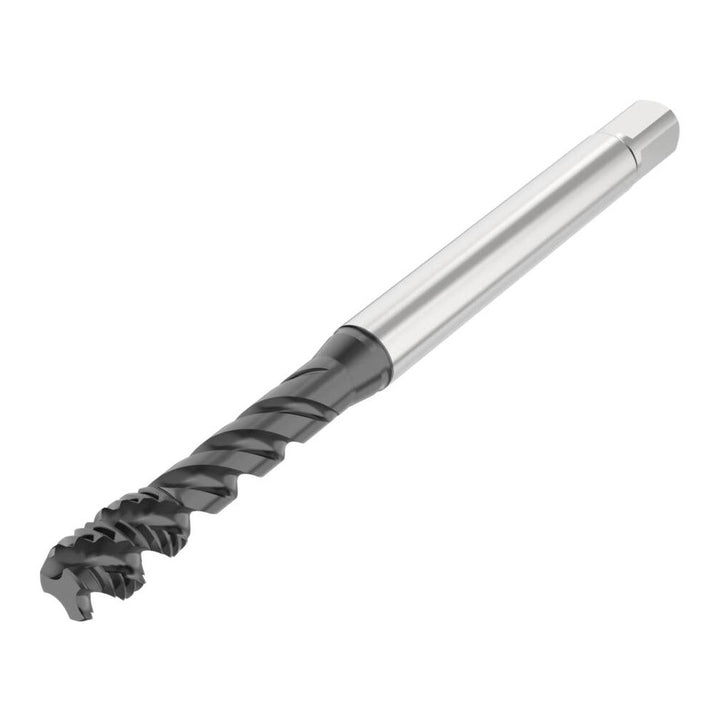

3/8-16 UNC Powdered Metal Tap, Multi-layer - Seco 10139062
MFR# 10139062Series T34
$69.24List $88.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingMulti-layer
Description
The Seco 10139062 is a 3/8-16 UNC Powdered Metal tap with a Multi-layer finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2BX
Coating finishMulti-layer
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle45
MaterialPowdered Metal
Material applicationCast Iron; Non-Ferrous Metal; Stainless Steel; Steel; Superalloy
Neck length (mm)24.00
Number of flutes3
Overall length (mm)100.00
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter (mm)10.00
Shank length (mm)61.00
Tapping depth (mm)39.00
Threads per inch16
Thread directionRight Hand
Thread length (mm)15.00
Thread pitch in1/16
Thread size in3/8-16
Thread standardUNC
