Seco

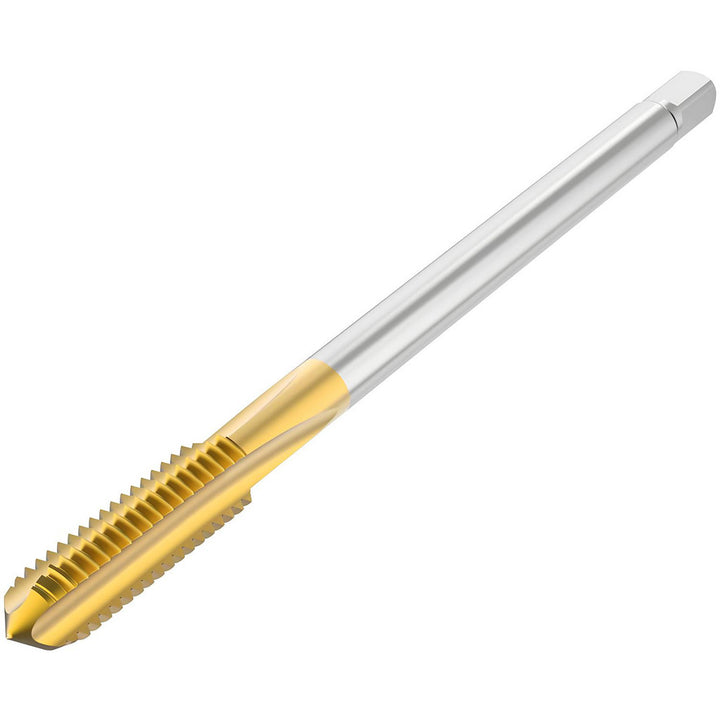

M3 Metric High-Speed Steel-E Machine Tap, TN - Seco 10139694
MFR# 10139694Series T32
$32.68List $41.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingTN
Description
The Seco 10139694 is a Metric High-Speed Steel-E Machine tap with a TN finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferSemi-Bottoming
Class of fit6H
Coating finishTN
Coolant throughNo
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length25.00
Number of flutes3
Overall length (mm)57.2000
OversizeNo
Shank diameter (mm)2.2000
Shank length (mm)21.200
Tapping depth (mm)36.00
Tap typeMachine
Threads per inch51
Thread depth (mm)11.00
Thread directionRight Hand
Thread length (mm)11.00
Thread pitch (mm)0.50
Thread size (mm)M3
Thread standardMetric
