Seco

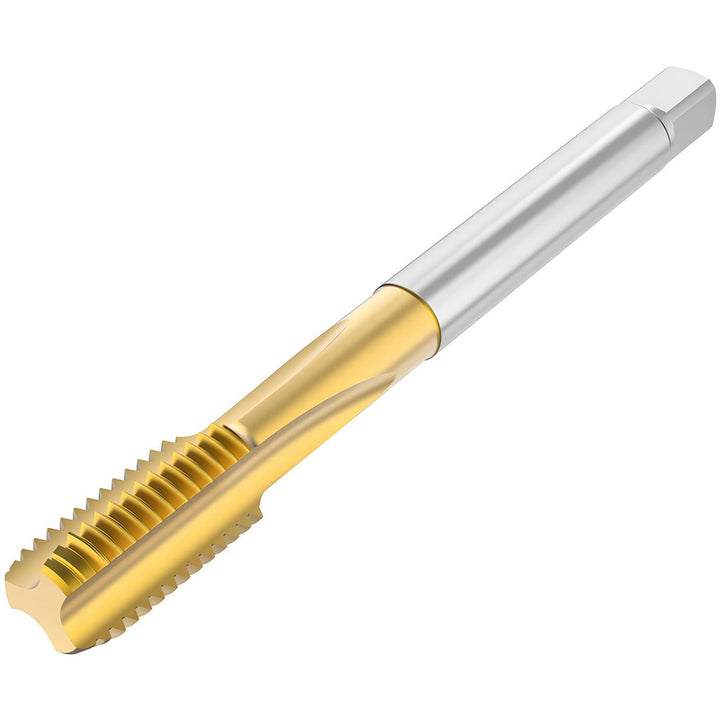

M30 Metric High-Speed Steel-E Machine Tap, TN - Seco 10139711
MFR# 10139711Series T32
$320.84List $411.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingTN
Description
The Seco 10139711 is a Metric High-Speed Steel-E Machine tap with a TN finish. 4 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferSemi-Bottoming
Class of fit6H
Coating finishTN
Coolant throughNo
MaterialHigh-Speed Steel-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Neck length70.00
Number of flutes4
Overall length (mm)180.0000
OversizeNo
Shank diameter (mm)22.0000
Shank length (mm)65.000
Tapping depth (mm)115.00
Tap typeMachine
Threads per inch7
Thread depth (mm)45.00
Thread directionRight Hand
Thread length (mm)45.00
Thread pitch (mm)3.50
Thread size (mm)M30
Thread standardMetric
