Seco

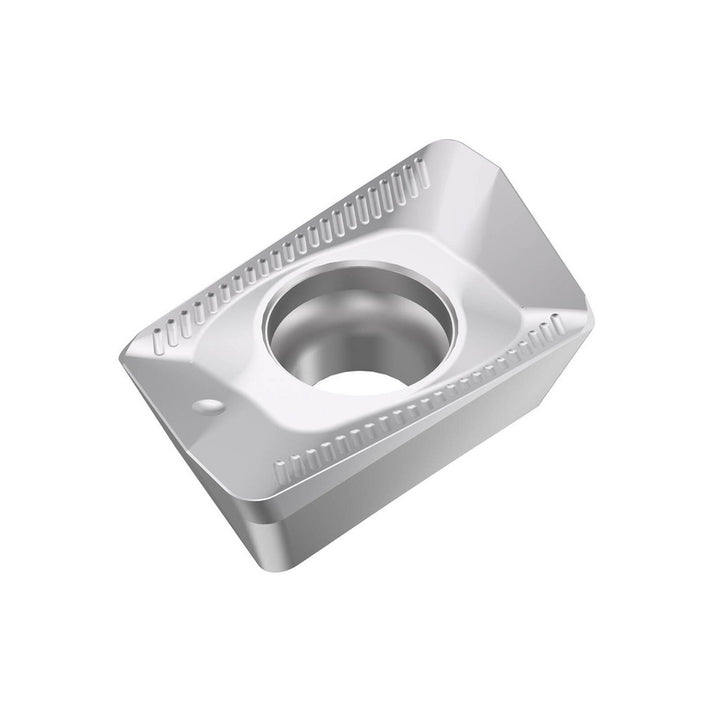

XOMX120408TR-ME08 Carbide Insert, Grade MP3501, TiCN - Seco 10198762
MFR# 10198762ISO/ANSI# XOMX120408TR-ME08Series XOMX
$25.19List $32.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 10198762 is a XOMX120408TR-ME08 carbide indexable insert, grade MP3501, TiCN coated.
Specifications
Ansi codeXOMX120408TR-ME08
Chip breakerME08
Coating finishTiCN
Coating processDuratomic
Corner radius in1/32
Cutter series compatibilityR217/220.69-12
Cutting directionRight Hand
Cutting edge effective length0.4567
Cutting edge styleT-Land
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOMX
Iso codeXOMX120408TR-ME08
Length0.4567
Length range0.4000 to 0.5000
Manufacturers catalog number10198762
Manufacturer gradeMP3501
Material applicationSteel
Material gradeP20; P30; P40; K20; K30; K40
Maximum depth of cut0.4567
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle20.100
Relief angle15.000
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1996
Thickness range0.1850 to 0.2000
Width0.3228
