Seco

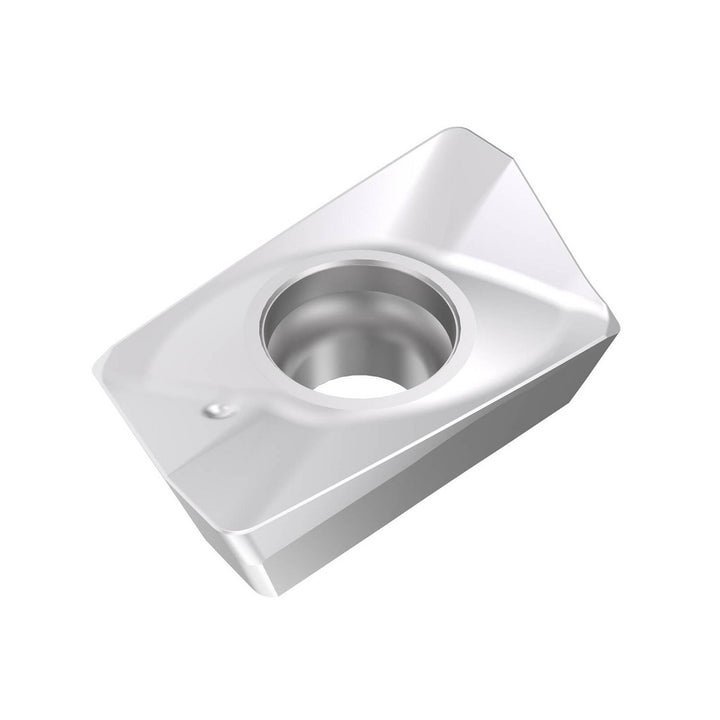

XOMX180608TR-M14 Carbide Insert, Grade MP3501, TiCN - Seco 10198764
MFR# 10198764ISO/ANSI# XOMX180608TR-M14Series XOMX
$32.84List $42.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 10198764 is a XOMX180608TR-M14 carbide indexable insert, grade MP3501, TiCN coated.
Specifications
Ansi codeXOMX180608TR-M14
Chip breakerM14
Coating finishTiCN
Coating processDuratomic
Corner radius in1/32
Cutter series compatibilityR217/220.69-18
Cutting directionRight Hand
Cutting edge effective length0.6693
Cutting edge styleT-Land
Hole diameter0.1969
Included angle degree90
Inscribed circle0.4409
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeParallelogram
Insert size18
Insert size code180608
Insert styleXOMX
Iso codeXOMX180608TR-M14
Length0.6693
Length range0.6000 to 0.7000
Manufacturers catalog number10198764
Manufacturer gradeMP3501
Material applicationSteel
Material gradeP20; P30; P40; K20; K30; K40
Maximum depth of cut0.6693
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle15.500
Relief angle15.000
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2520
Thickness range0.2500 to 0.3500
Width0.4409
