Seco

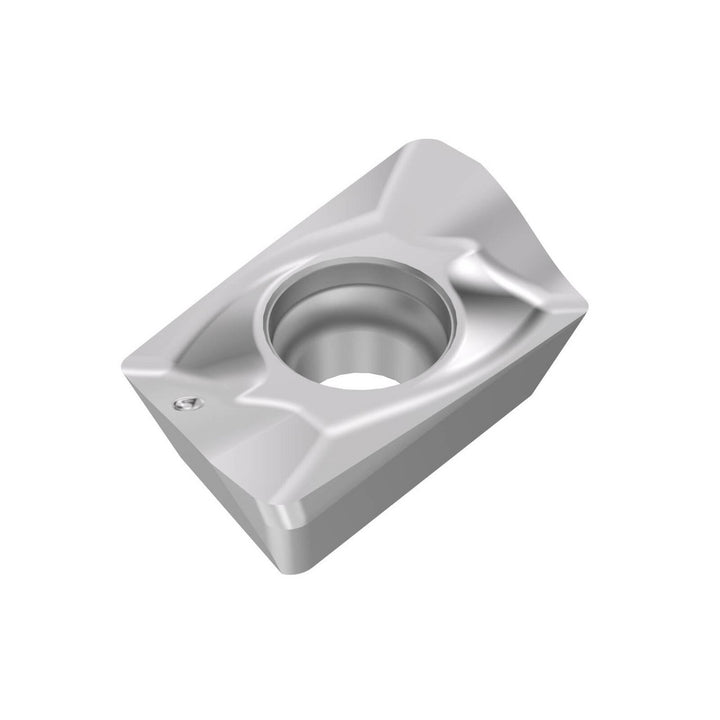

XOEX120408R-M07 Carbide Insert, Grade MP3501, TiCN - Seco 10198775
MFR# 10198775ISO/ANSI# XOEX120408R-M07Series XOEX
$31.32List $40.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeMP3501
MaterialCarbide
CoatingTiCN
Description
The Seco 10198775 is a XOEX120408R-M07 carbide indexable insert, grade MP3501, TiCN coated.
Specifications
Ansi codeXOEX120408R-M07
Chip breakerM07
Coating finishTiCN
Coating processDuratomic
Corner radius in1/32
Cutter series compatibilityR217/220.69-12
Cutting directionRight Hand
Cutting edge effective length0.4724
Cutting edge styleHoned
Hole diameter0.1535
Included angle degree90
Inscribed circle0.3228
Inscribed circle range0.3000 to 0.3500
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeParallelogram
Insert size12
Insert size code120408
Insert styleXOEX
Iso codeXOEX120408R-M07
Length0.4724
Length range0.4000 to 0.5000
Manufacturers catalog number10198775
Manufacturer gradeMP3501
Material applicationSteel
Material gradeP20; P30; P40; K20; K30; K40
Maximum depth of cut0.4724
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle20.300
Relief angle15.000
Secondary workpiece materialStainless Steel; Cast Iron; Superalloys & Titanium
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1980
Thickness range0.1850 to 0.2000
Width0.3228
